Metrology Glossary: Gage Block

What Is A Gage Block?

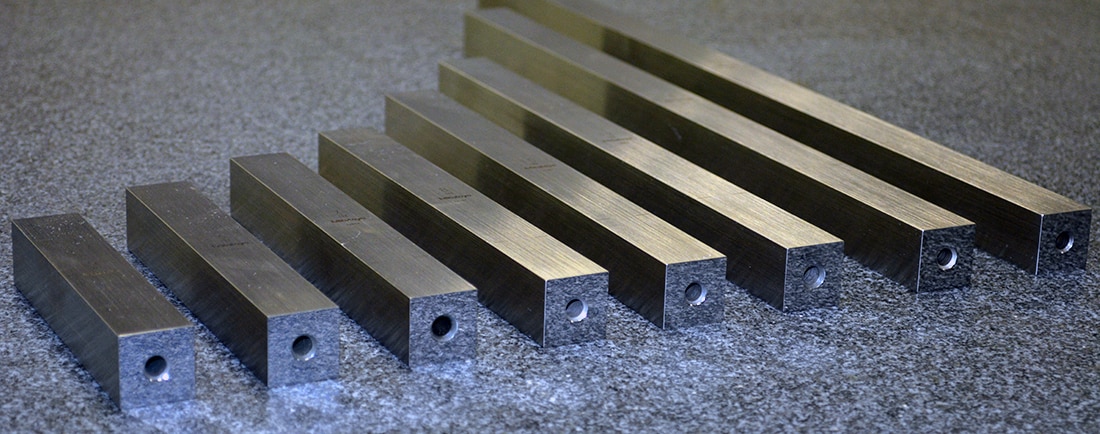

A gage block is a fundamental dimensional reference standard used in quality laboratories to verify the accuracy of dimensional measurements. Crafted from materials like steel or ceramic, these blocks are designed with tight tolerances for stability and durability. Available in various sizes and compatible with both metric and imperial units, gage blocks are versatile tools used to calibrate measurement instruments. Their construction and precision make them essential in ensuring the reliability of measurements taken in diverse industrial settings, where they are often stacked to create combinations that serve as benchmarks for calibration processes.

What Are Gage Blocks Used For?

Calibration of Measuring Instruments: Gage blocks play a crucial role as the primary reference standard in the calibration of various measuring tools, including micrometers, calipers, dial indicators, and coordinate measuring machines (CMMs). Technicians utilize these blocks to compare instrument readings with the known dimensions of the blocks, ensuring the accuracy of the tools and detecting any potential deviations.
Setting and Checking Fixed and Comparative Gages: Gage blocks find application in setting the precise dimensions of fixed gages such as snap gauges and ring gauges. Additionally, they are instrumental in verifying the accuracy of comparative gages such as dial indicators and height gauges.
Dimensional Inspection and Quality Control: In manufacturing, gage blocks are used for direct measurements of critical dimensions in components and assemblies. This practice ensures that parts adhere to required specifications, contributing to consistent quality control throughout the manufacturing process.
Machine Setup and Alignment: Gage blocks play a vital role in the precise configuration of machinery, tooling, and fixtures. By using gage blocks, operators can set dimensions and align equipment accurately, minimizing errors and promoting the smooth operation of production equipment.
