OGP SmartScope M7

Product Overview

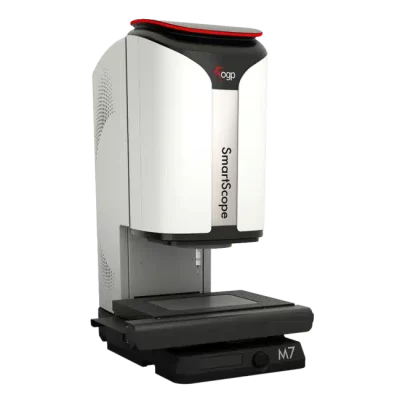

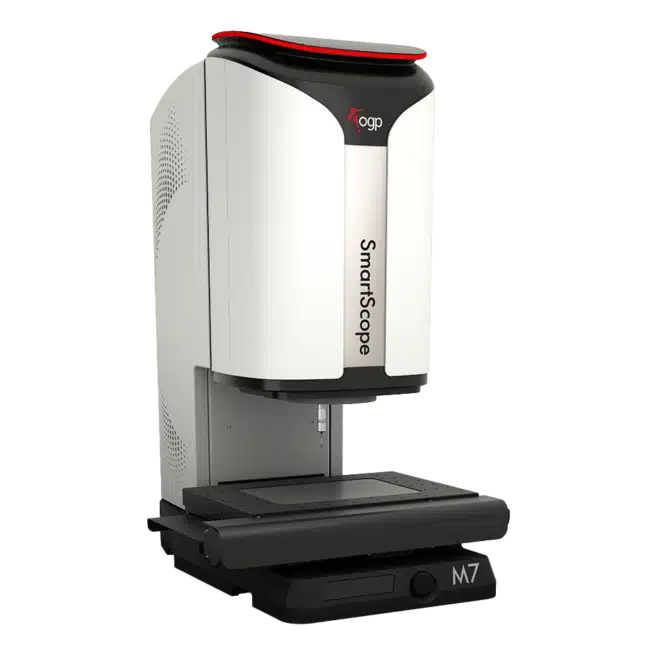

The SmartScope® M7 by OGP is a benchtop 3D multisensor dimensional measuring system designed for high-precision metrology applications. It features the IntelliCentric™-M Optical System, which includes fully telecentric fixed lens optics and VIRTUAL ZOOM™ technology. This system is paired with a high-density 20 MP digital metrology camera and a built-in electronic aperture, delivering ultra-high-resolution images with low distortion—ideal for high-speed edge detection metrology
Our precision measurement group offers SmartScope M-Series systems throughout our territories in the U.S. For more information about the OGP products we offer, or to get a quote for new equipment, contact a local team member today.
Features and Benefits
High-Resolution Imaging: The 20 MP digital metrology camera ensures detailed and accurate measurements.
Advanced Optical System: Fully telecentric fixed lens optics with VIRTUAL ZOOM™ technology provide low-distortion imaging.
Versatile Illumination: Standard LED coaxial, substage profile, and SmartRing™ light illumination offer flexibility for various measurement tasks.
Stable Construction: A heavy-duty cast base with an integral compound stage and Y-axis center drive ensures stability and precision.
Multisensor Capability: Optional sensors include TP-20 and TP-200 touch probes, SP-25 Scanning Probe, Feather Probe™, Through-the-Lens (TTL) Laser, Rainbow Probe™, and TeleStar® Probe, enhancing measurement versatility.
Specifications
XYZ Travel:
- 250 x 150 x 200 mm
- Extended X-axis, 300 mm (optional)
Optics:
- Fixed optical magnification with digital zoom, M 11.5 standard lens (standard)
- M 20.10 Wide Field-of-View / Long Working Distance (optional)
- M 6.3 High Magnification (optional)
- Focus Grid Projector (optional)
Illumination:
- Substage LED profile
- Coaxial LED surface
- SmartRing™ LED ring light (green)
Tactical Sensors:
- Touch Probe
- Scanning Probe
- Feather Probe
Non-Contact Sensors:
- Through the Lens Laser
- Rainbow Probe
- TeleStar Probe
Accessories:
- Grid Projectors
- Rotary Indexers
Industrial Applications
The SmartScope M7 is suitable for industries requiring precise dimensional measurements, including:
Why Work With Cross Company for the SmartScope M7?
- Expert Consultation: Our team provides personalized guidance to select the right metrology solutions for your needs.
- Comprehensive Support: From installation to training and maintenance, we ensure seamless integration into your workflow.
- Commitment to Quality: We uphold high standards to help you achieve precise and reliable measurement results.
