What Is A Spline Gage?

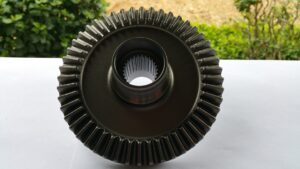

A spline gage is a precise tool used for examining the dimensions of splines, which are raised or tooth-like features on a shaft or hub that engage with corresponding grooves in another part to transmit torque and maintain alignment. These gages, typically made from hardened steel or carbide, come in various sizes and types, with “go” and “no-go” gages being the most common. “Go” gages verify that a spline fits properly into its mating part, while “no-go” gages ensure it’s not too large. Both gages are used together for efficient inspection. In addition to these, there are other gage types such as variable gages for precise measurements, master gages for calibration, and setting gages for adjustment.

What Are Spline Gages Used For?

Ensuring proper fit and function:

Go gages: Verify the accurate insertion of a spline into its corresponding component, ensuring a reliable fit and effective torque transmission.
No-go gages: Restrict the usage of oversized splines, preventing potential fit and functionality issues that may lead to misalignment or damage.
Variable gages: Deliver precise measurements of spline dimensions for meticulous adjustments and fine-tuning.

Quality control and inspection:

Production line: Use spline gages in manufacturing to validate that splines adhere to specified tolerances and meet quality standards before assembly.
Maintenance and repair: Utilize gages for diagnosing and rectifying spline connection issues in machinery, enhancing maintenance and repair procedures.
Calibration and standardization: Use master gages to ensure uniformity and accuracy in measurements across various inspection tools and processes.

Specialized applications:

Setting gages: Adjust equipment and tools involved in spline manufacturing, ensuring precise control over dimensions.
Taper master plugs: Streamline testing and inspection of tapered splines, commonly found in automotive and aerospace applications.
Onboard machine tool monitoring: Integrate certain gages with machinery for continuous monitoring of spline dimensions during production, thereby increasing efficiency and minimizing waste.
