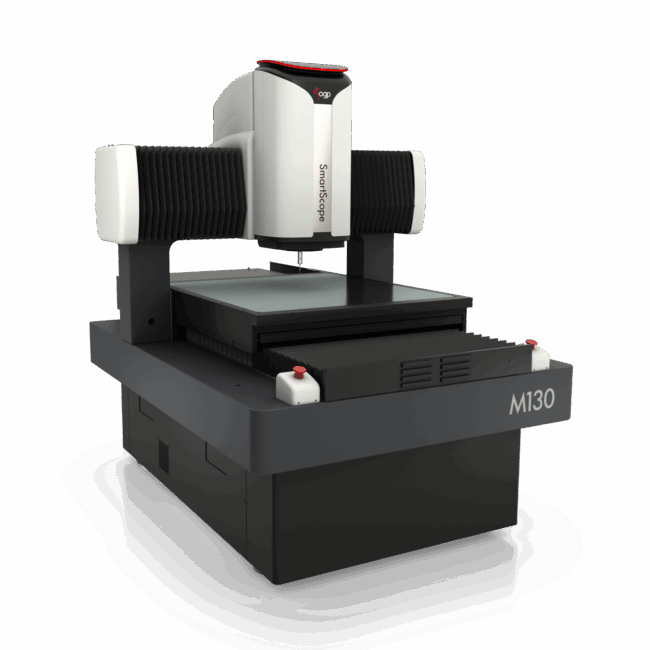

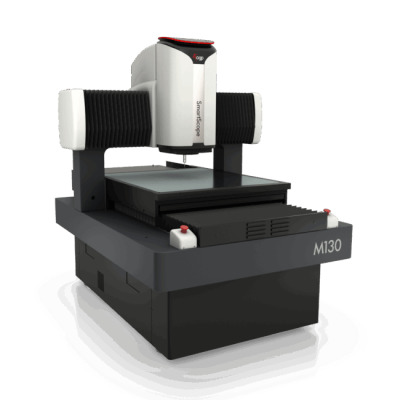

OGP SmartScope M130
Product Overview
The OGP SmartScope M130 is a, large-capacity multisensor metrology system built for high-precision measurements of large and heavy parts. Equipped with the IntelliCentric™-M Optical System and powered by ZONE3® metrology software, this machine is fully 3d and multisensor capable. As an authorized distributor of OGP, Cross Company offers the expertise and support needed to seamlessly integrate the M130, making it an ideal solution for processes industries requiring precision for larger components.
Our precision measurement group offers SmartScope M-Series systems throughout our territories in the U.S. For more information about the OGP products we offer, or to get a quote for new equipment, contact a local precision measurement expert today.
Features and Benefits
High-Resolution Imaging: 20 MP digital metrology camera ensures accurate and detailed measurements.
Telecentric Lens System: The IntelliCentric-M Optical System delivers clear, distortion-free images through fully telecentric optics with VIRTUAL ZOOM™.
Extended Measurement Range: As a large travel floor model, the M130 accommodates larger parts with substantial XYZ travel.
Durable Construction: A fixed granite bridge and base rest on a sturdy steel support structure to provide enhanced measurement stability.
Multisensor Compatibility: Supports additional probes like the TP-20, TP-200, SP-25, Feather Probe™, TTL Laser, Rainbow Probe™, and TeleStar® Probe for versatile measurement capabilities.
Specifications
XYZ Travel:
- 790 x 815 x 200 mm
- Extended Z axis: 300 mm (optional)
- Extended Z axis: 400 mm (optional)
Optics:
- Fixed magnification with digital zoom, M 11.5 standard lens
- M 20.10 Wide Field-of-View / Long Working Distance (optional)
- M 6.3 High Magnification (optional)
- Focus Grid Projecto: LED source (optional)
Illumination:
- Substage LED profile
- Coaxial LED surface
- SmartRing™ LED ring light (green)
Tactical Sensors:
- Touch Probe
- Scanning Probe
- Feather Probe
Non-Contact Sensors:
- Through the Lens Laser
- Rainbow Probe
- TeleStar Probe
Accessories:
- Grid Projectors
- Rotary Indexers
Industrial Applications
The SmartScope M50 is suitable for industries requiring precise dimensional measurements, including:
Why Work With Cross Company for the SmartScope M130?
- Expert Consultation: Our team provides personalized guidance to select the right metrology solutions for your needs.
- Comprehensive Support: From installation to training and maintenance, we ensure seamless integration into your workflow.
- Commitment to Quality: We uphold high standards to help you achieve precise and reliable measurement results.
