MarSurf PS10 Mobile Roughness Measuring Instrument
Product Overview

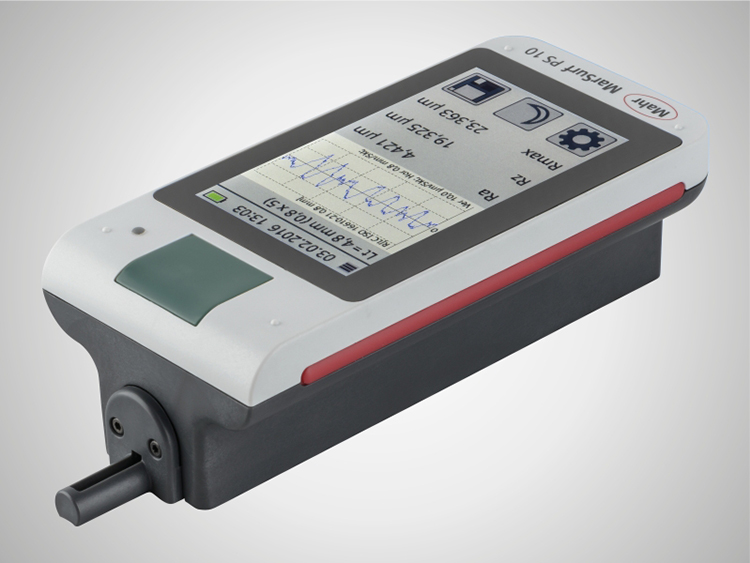

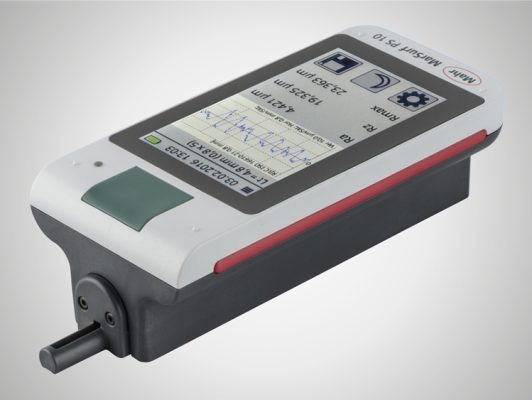

The Mahr MarSurf PS10 Mobile Roughness Measuring Instrument
Cross offers a wide variety of Mahr products available to Cross customers throughout our territories in the U.S. The MarSurf PS10 is an ideal option for mobile surface roughness measuring and is perfect for applications in a variety of industries such as automotive, aerospace, and consumer products. Some applications include shafts and housing components, milled and turned parts among others. This surface roughness unit is the perfect option for measuring on the go.
Features and Benefits
Take a look at the features and benefits of the MarSurf PS10
Compact roughness measuring instrument for mobile use
Simple and intuitive to use: As easy to use as a smart phone
Large, illuminated, adjustable 4.3″ TFT touch display
Data backup as TXT, X3P or PDF file
Creation of completed PDF measuring records in the measuring device
Customer-specific comments for the PDF measuring record are entered directly into the MarSurf PS 10
Power supply independent operation: Over 1200 measurements without having to recharge the instrument
An all in one solution. Small and lightweight (approx. 500 g)

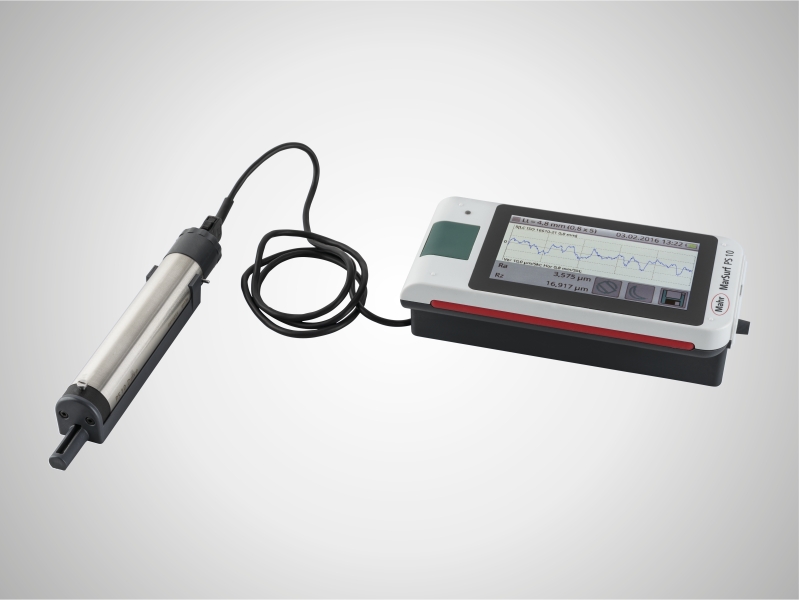

Instrument flexibility: Removable drive unit
31 surface parameters offer the same range of functions as a laboratory instrument.
Error free operation thanks to an integrated, removable roughness standard
Quick access to your frequently used functions via the Favorites list in the display
Specifications
Positioning speed 0.5; 1.0
Dimensions in mm
160 mm x 77 mm x 50 mm
Measuring force (N)
0,00075
Filter according to ISO/JIS
Gaussian filter as per ISO 16610-21 (formerly ISO 11562), special filter as per DIN EN ISO 13565-1, Lambda s filter as per DIN EN ISO 3274 (can be switched off)
Cutoff Ic according to ISO/JIS
0,25 mm , 0,8 mm , 2,5 mm , automatic filter detection
Data interface
USB , MarConnect (RS-232) , Micro SD slot for SD / SDHC cards up to 32 GB
Storage capacity
Min. 3900 profiles, min. 500,000 results, min. 1500 PDF records, expandable to 32 GB with Micro SD card
Probe
Inductive skidded probe
Calibration function
Dynamic; Ra, Rz, Rsm
Traversing length according ISO 12085
(MOTIF) 1 mm, 2 mm, 4 mm, 8 mm, 12 mm, 16 mm
Parameters
Ra , Rq , Rz (Ry (JIS) is equivalent to Rz) , Rz (JIS) , Rmax , Rp , RpA (ASME) , Rpm (ASME) , Rpk , Rk , Rvk , Mr1 , Mr2 , A1 , A2 , Vo , Rt , RPc , Rmr (tp (JIS, ASME) is equivalent to Rmr) , RSm , RSk , RS , CR , CF , CL , R , Ar , Rx , R3z
Traversing length Lt according ISO/JIS
1.5 mm , 4.8 mm , 15 mm , N x Lc , variable , automatic
