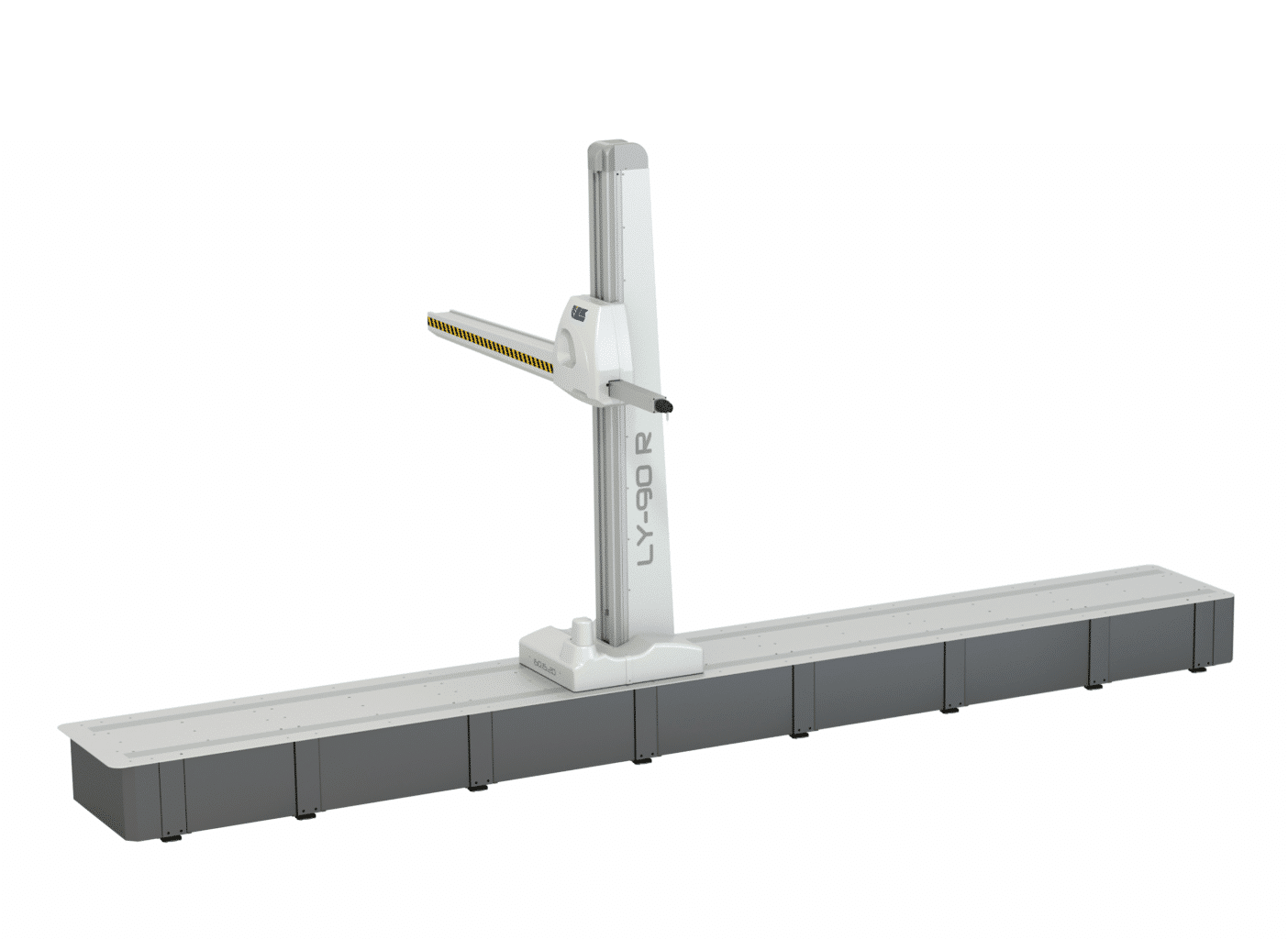

LY-90R Horizontal CMM
Product Overview

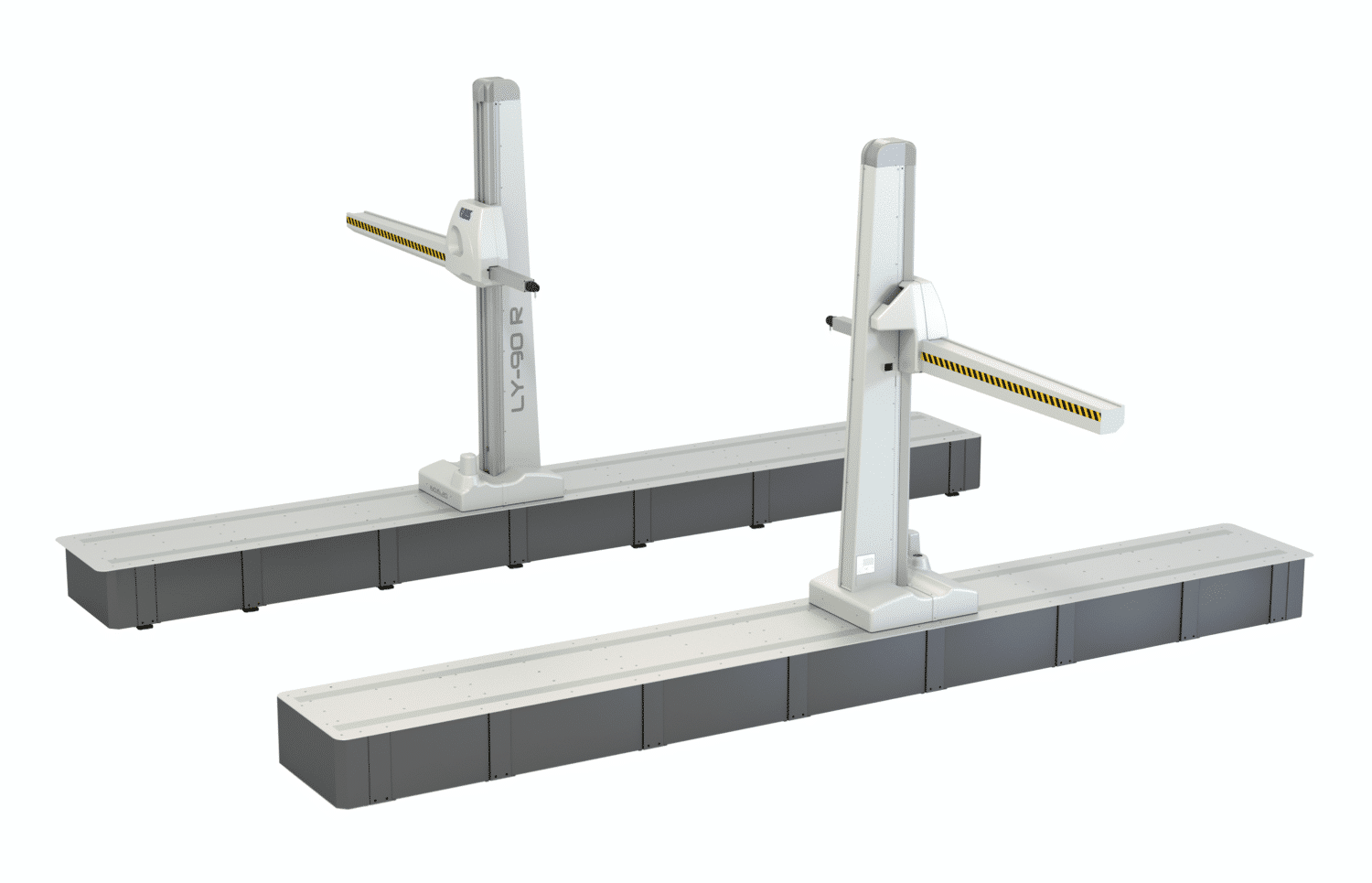

The LY-90R Series CMM from LK Metrology is a large format horizontal CMM designed for the dimensional measurement of large components. Ideal for industries such as motorized vehicles industires such as automotive, this horizontal CMM is equipped with air bearings both on the Y-axis and on the Z-axis which guarantee precision and accuracy at scale. In addition, the X-axis guideway can be mounted on the floor or at floor level for versatility.
As a distributor for LK Metrology in the U.S. the precision measurement group at Cross Company offers the LY-90T Series horizontal CMM throughout our territories and our sales teams can work with your team to determine the best LK Metrology solution for your process. Learn more and schedule a demonstration today!
Features and Benefits
Can be installed on a pneumatic vibration isolation system for use in production environments, without the need for a dedicated foundation for the system
Light but Heavy-duty mobile carriage is built entirely of light aluminum alloy
Double mechanical guideway sliding system with recirculating ball bearings guarantee reliability, accuracy and speed of the measurements
Heavy-duty walkable guideways provide safety for the operators and the system in a shop-floor environment
Open structure allows for the inspection of large heavy parts, placed on a work-plate, fixture or automated loading-unloading system
Control of movement through DC servo motors and mechanical carrier counterbalance with safety brake
Technical Specifications
The LY-90 R CMMs Series is available in 24 standard models with the following YZ axes sections: 10.10 / 15.15 / 15.18 / 15.20 / 16.20 / 16.25
Accuracy (µm): from 10+15L/1000
3D Speed: from 520 mm/sec
3D Acceleration: from 850 mm/sec*
Industrial Applications
LK Metrology LY-90R series horizontal CMMs are ideal for a range of industrial applications.
