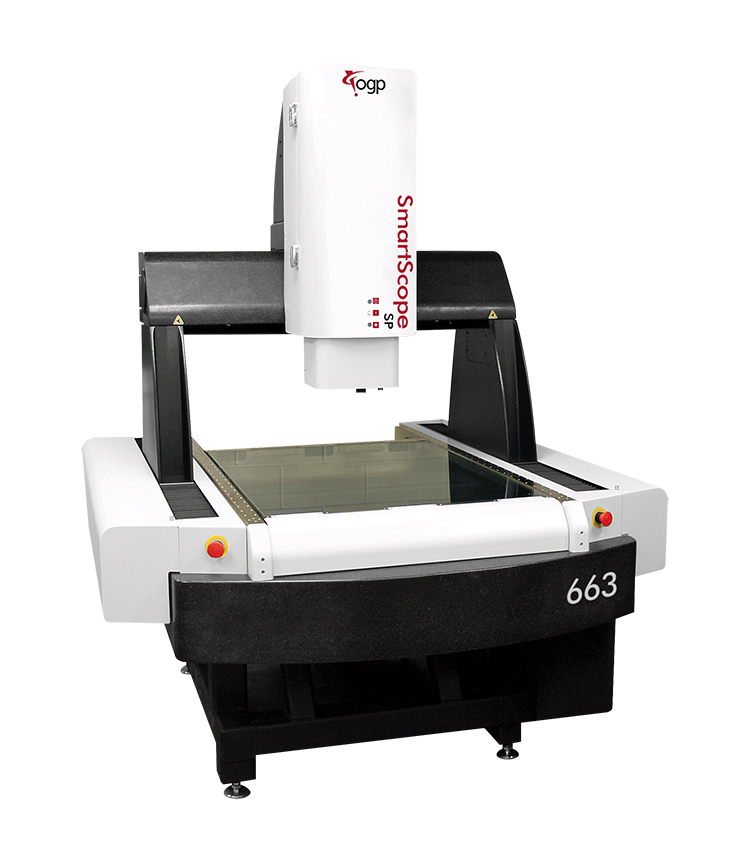

SmartScope SP 663
Product Overview
SmartScope® SP systems are designed for optimum scanning probe performance. Starting with a rigid base structure, the system mechanics are designed to optimize dynamic data acquisition critical to scanning probe performance. Most performance specifications for SP models are according to ISO 10360 standards.
With XYZ travel of 650 x 660 x 300 mm, the SmartScope SP 663 offers the largest working volume in the SP series. The high payload capacity is ideal for larger, heavier parts. In addition, all SP systems utilize ZONE3 metrology software for robust data acquisition.
As a distributor for OGP, our precision measurement group offers the full line of SmartScope SP systems throughout several of our sales territories in the U.S. For more information about the OGP SmartScope SP 663, or to get a quote for new equipment, contact a local team member today.
Features and Benefits
The SmartScope SP 663 is a moving bridge system designed for larger, heavier parts. During measurement the part remains stationary while the optics and sensors are moved around it. SmartScope SP 663 also offers:
A large measuring volume and high payload capacity in compact footprint
A moving bridge design, allowing heavy parts to be loaded by a conveyor or overhead crane, if needed
Granite base and granite bridge with heavy-duty cast uprights ensure thermal stability and vibration isolation even under adverse conditions
