SmartScope Flash 200
Product Overview

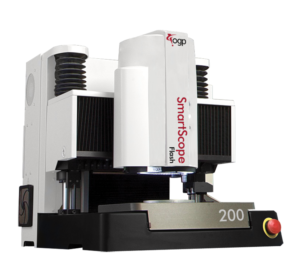

The SmartScope® Flash™ 200 is a full-featured benchtop automatic measurement system, and the smallest member of the SmartScope Flash family of digital measurement systems.
Innovative design features offer Cross customers an “elevating bridge” and an embedded computer which means the system takes up little space on a benchtop while providing an ample 8″ x 8″ x 6″ inch measuring range and extensive measurement capabilities.
The SmartScope Flash 200 has patented innovations that let you do more, and do it faster. The computer controlled LED array backlight tracks X-axis motion of the optics with no moving parts. SmartRing™ light is standard for the ultimate flexibility in surface illumination. SmartScope Flash 200 is multisensor capable and comes standard with a high quality Zoom 12 AccuCentric® zoom lens that autocalibrates with every magnification change.
SmartScope Flash 200 is a great video measuring machine. Add touch probe, laser and micro-probes and it’s a full-fledged multisensor measurement system. SmartScope Flash 200 – a compact, automatic measurement value.
As a distributor for OGP, our precision measurement group offers the full line of SmartScope Flash systems throughout our sales territories in the U.S. For more information about the OGP products we offer, or to get a quote for new equipment, contact a local team member today.
Features and Benefits:
- Designed-in accuracy – Patented “elevating bridge” design eliminates errors common to other designs
- Multi-sensor versatility – Optional touch probe, off-axis DRS™ laser or on-axis TTL interferometric laser, and /or micro-probes
- State-of-the-art software – Choose from a variety of powerful QVI metrology, productivity and offline software applications, to suit your requirements
Specifications
| SmartScope Flash 200 Measuring Ranges/Travel | ||
| mm | in | |
| X Axis | 200 | 7.87 |
| Y Axis | 200 | 7.87 |
| Z Axis | 150 | 5.90 |
- Area Accuracy: (2.0 + 6L/1000) µm
- Z Accuracy: Up to (1.4 + 6L/1000) µm
- Overall Equipment Size and Footprint
- Max Height: 730 mm (28.74 in)
- Width: 600 mm (23.62 in)
- Max Depth: 860 mm (33.85 in)
- Weight: 100 Kg (220.46 lbs)
- Power Requirements: 115/230 vac, 50/60 Hz, 1 phase, 600 W
- Software Options:
- Metrology Software: ZONE3® or ZONE3 Pro, MeasureMind® 3D MultiSensor
- Productivity Software: MeasureFit® Plus, SmartFit® 3D, SmartProfile®
- Offline Software: ZONE3, MeasureMind 3D MultiSensor, Measure-X, VMS
