Ace Skyline Measuring Arm 3D Scanner
Product Overview

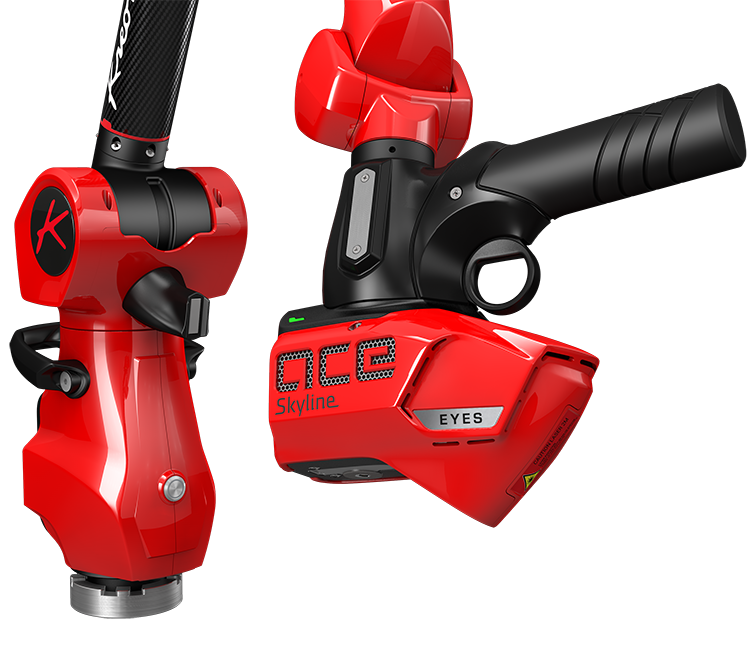

The Ace Skyline from Kreon combines the Ace measuring arm and the Skyline 3D scanner, providing a high performance system for contact and non-contact 3D measurements.
As a distributor for Kreon in the U.S. our precision measurement group offers the the Ace Skyline measuring arm scanner combination throughout our sales territories in the U.S. For more information about the Ace Skyline, or to see which portable CMM or 3D scanner is right for your application, contact one of our local measurement experts today.
Previous
Next
Features and Benefits
The Kreon Ace Skyline offers:
Interchangeable Scan Head – Removable scanner without any tools to switch quickly from scanning to probing

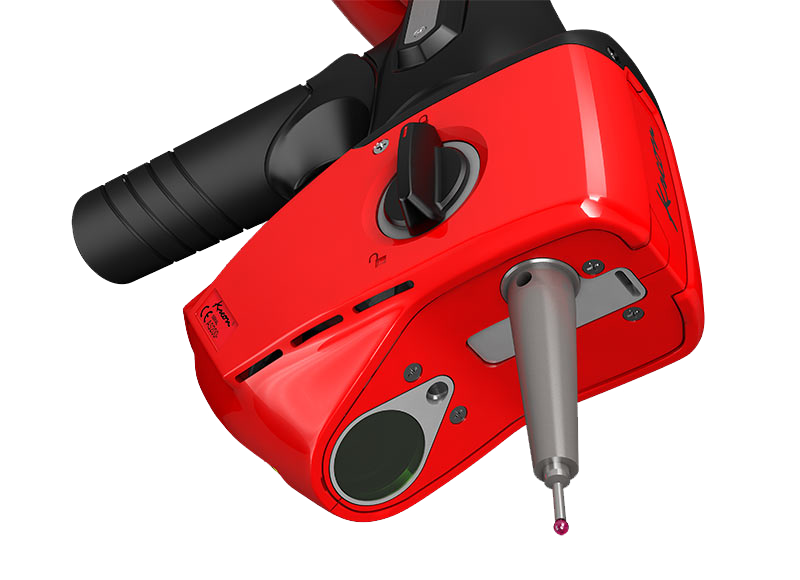

Dual Scan/Probe Head – Probe directly with the scanner to measure features in the same range
Lightweight mobile parts to scan longer without effort
Save Time – Large laser line and high frequency decrease the number of scan passes and make the scanner movement faster to acquire dense point clouds in a blink of an eye.
Scan Any Part – Ready for any surface, whatever the appearance, color or brightness
Scan Exact Reality – Skyline scanner provides a high resolution, to capture the tiniest details, and a high accuracy to closely reflects reality.
Compatible with both ACE and ACE+
The ACE range from Kreon has two models: the ACE and ACE+ measuring arms. The ACE+ builds on the high quality design and function of the original ACE. Cross offers both options throughout our territories in the U.S. Take a look at the full range of features included in the base ACE model.
3D Scanning With Skyline
With high resolution and high accuracy, Skyline 3D scanners offer an advanced range with blue laser. Work with a Cross precision measurement expert to see if an ACE or ACE+ portable measuring arm combined with the Skyline 3D scanner is best for your application.
Skyline EYES
The most accurate
Skyline WIDE
The fastest
Skyline OPEN
The most affordable
Technical Specifications
Speed*
600,000 pts/sec
Accuracy*
09 µm
Laser line width*
200 mm
Frequency*
300 Hz
*maximum values depending on the Skyline scanner model
