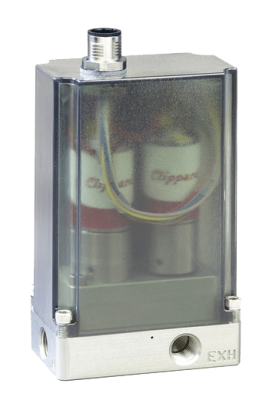

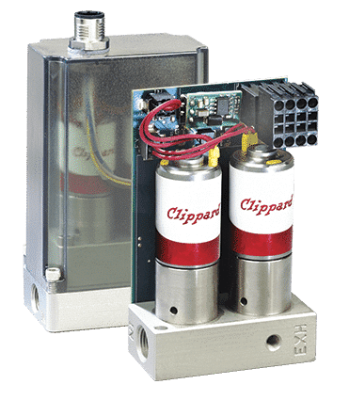

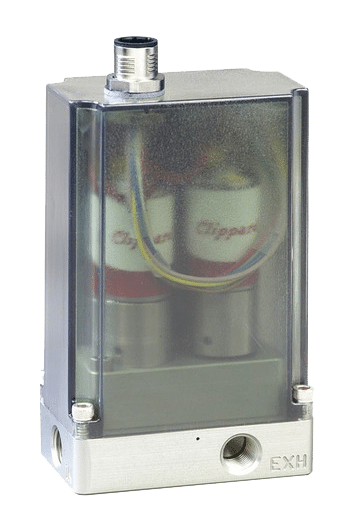

Cordis Proportional Pressure Controls

Product Overview

Precise, linear pressure control within a closed-loop system with ultra-high resolution and repeatability

At Cross Company, we are proud to represent a number of providers such as Clippard that give our customers the flexible solutions that they require for their applications. The Cordis High Resolution Electronic Proportional Pressure Controls, is a great example of just such a solution. Because the Cordis utilizes proven EVP and DVP lines of proportional valves, it allows for repeatable and steady downstream pressure regardless of demand or process changes. The system is adaptable to a variety of sensors that can close the loop around pressure, vacuum, or flow.

Cordis Proportional Pressure Controls 1

Features and Benefits

Take a look at some of the key features of the Clippard Cordis Proportional Isolation Valve

Smooth linear control

Integrated internal or external sensor feedback

Multiple flow configurations

Static or dynamic applications with the same proportional control

Proportional fill and bleed control

Customizable pressure ranges and mounting options

No integral bleed required

Operating pressure range: 0-150 psig

Typical flow: 2.7 to 65 l/min (±10% @ 100 psig)

Typical response time: <20 ms (application dependent)

Accuracy: ±0.25% of full scale

Resolution: ≤5 mV
