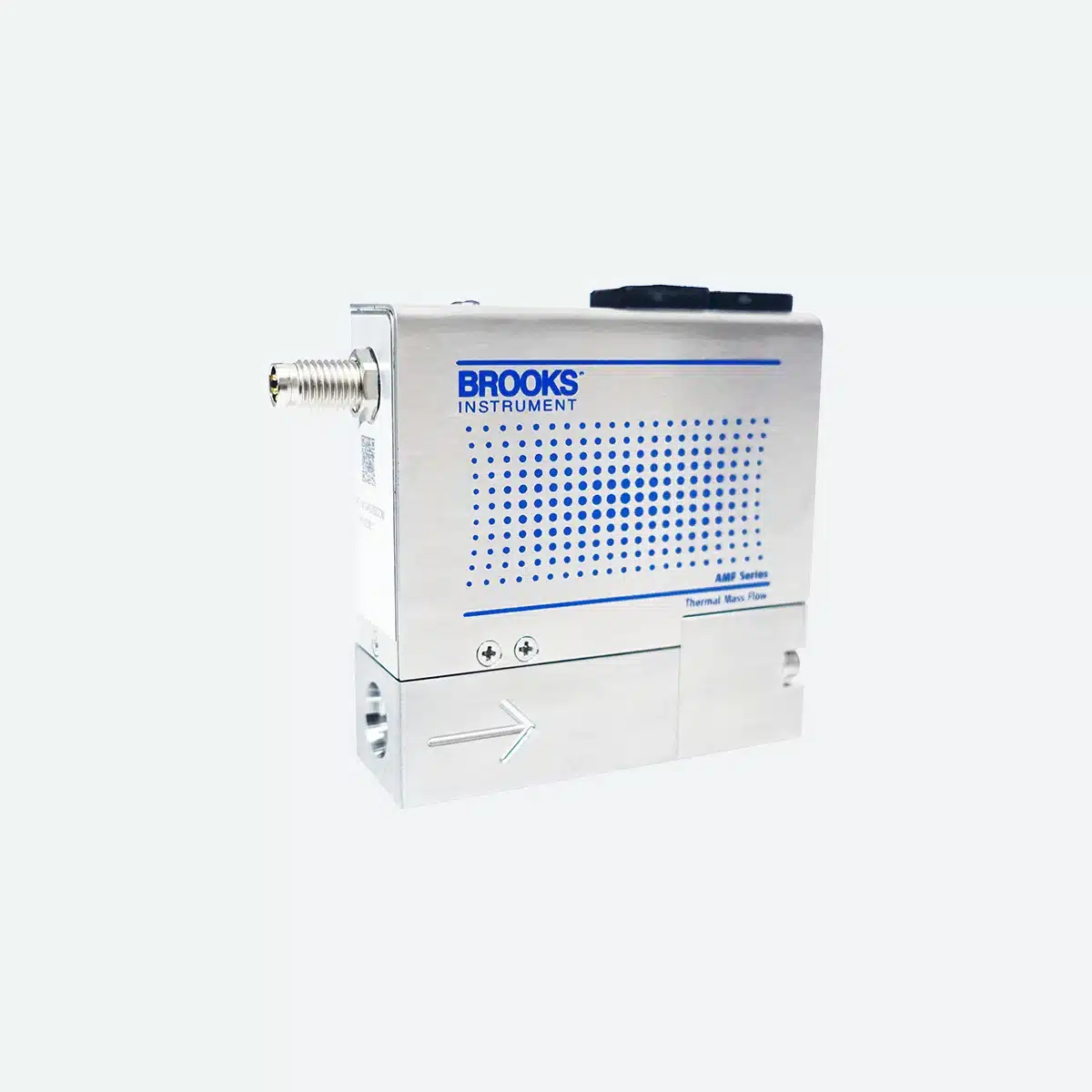

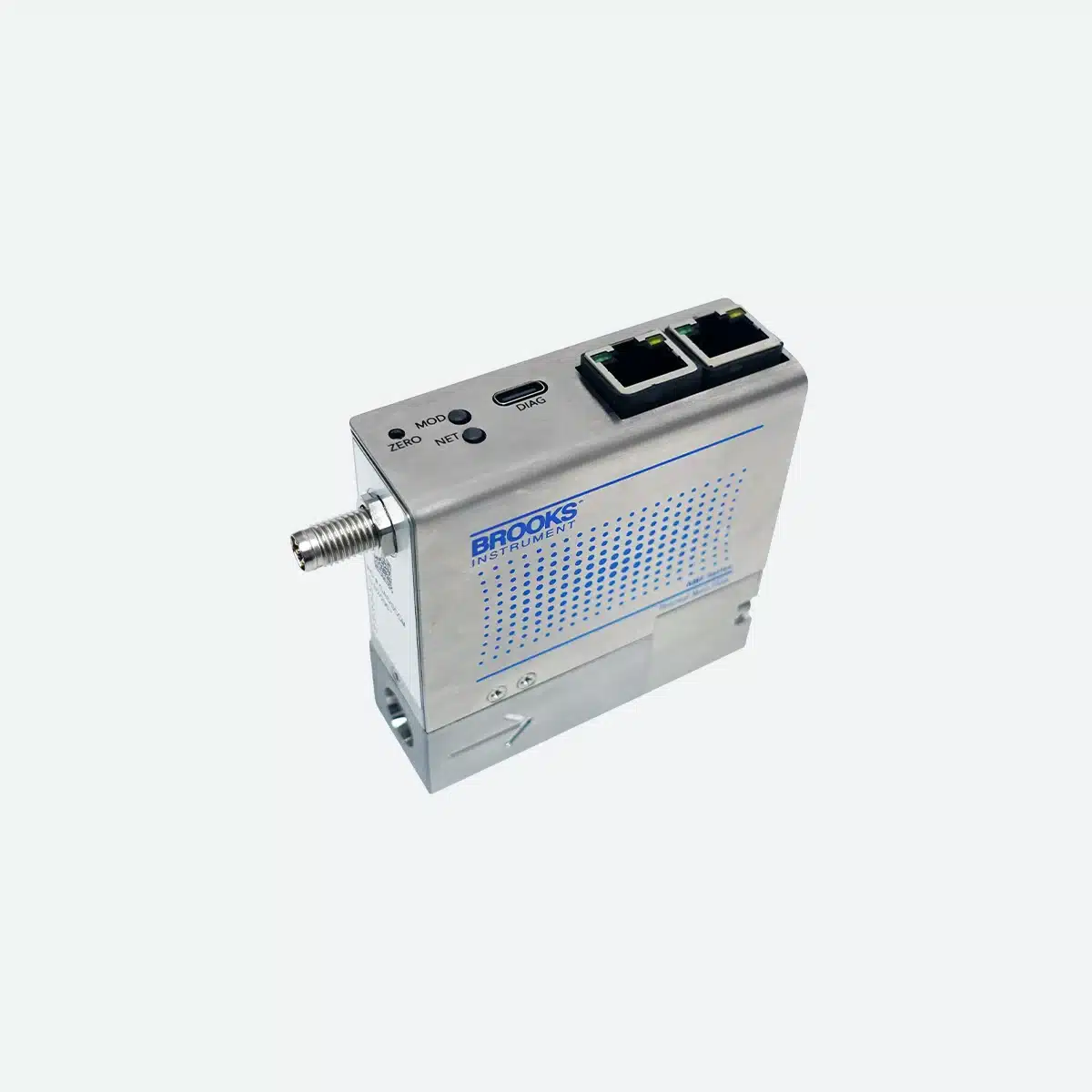

AMF Series Mass Flow Controller
Product Overview
The Brooks Instrument AMF Series (Advanced Mass Flow) represents a milestone in ultra-compact, digital thermal mass flow control. Specifically engineered to address tight spacing constraints in modern industrial and laboratory environments, the AMF Series completely eliminates performance trade-offs. It delivers high-precision gas control, exceptional low-flow stability, and multi-gas configurability in a highly condensed footprint, making it ideal for demanding applications like bioprocessing benchtop bioreactors, thin-film advanced coatings, optical fiber manufacturing, and complex gas mixing systems.
Equipped with native EtherNet/IP™ connectivity and a user-friendly, embedded web-based interface, this mass flow controller streamlines complex system integrations and allows for seamless real-time remote configuration and monitoring. By pairing advanced integrated diagnostics with superior sensor stability, the AMF Series shifts your operation from reactive maintenance to proactive optimization, ensuring long-term process continuity without the risk of unexpected calibration drift.
For more information about the Brooks Instrument AMF Series mass flow meter, contact a Cross Process Solutions expert or take a look at some highlighted details below.
Features and Benefits
Take a look at some of the features and benefits of the AMF Series:
Precision Low-Flow Stability: Specially optimized to control sensitive, low-velocity gas currents with tight consistency, directly improving process quality and reducing overall batch variability.
Minimized Drift & Recalibration: Features superior long-term thermal sensor stability that resists accuracy degradation over time, lowering the risk of unexpected process drift and reducing routine maintenance shutdowns.
Zero Leak-by Valve Technology: Utilizes an advanced elastomer-sealed design restricting leak-by to less than 0.005 sccm, protecting system purity and maximizing raw material yield.
Expansive Control Flexibility: A wide 1000:1 turndown ratio allows a single mass flow controller to manage multiple flow ranges, allowing facilities to consolidate hardware and raise operational efficiency.
Proactive Predictive Alarms: Equipped with built-in advanced diagnostics and customizable alerts that catch device issues early, significantly lowering the risk of catastrophic process downtime.
Simplified Network Architecture: Seamlessly integrates with modern manufacturing setups via built-in EtherNet/IP™ and a user-friendly embedded web interface, streamlining configuration to raise engineering efficiency.
Product Specifications
For full specifications, including dimensional drawings and compliance information, download the product specification sheet below.
Measuring Principle:
- Thermal Mass Flow (TMF)
Flow Range Capacity:
- Up to 27 slpm (27,000 sccm)
Accuracy:
- ±0.6% of setpoint (from 20% to 100% Full Scale) / ±0.12% Full Scale (under 20% Full Scale)
Repeatability Index:
- ±0.25% of setpoint
Maximum Pressure Rating:
- 150 psi
Operating Temperature Limits:
- 0°C to 65°C
Digital Communication:
- Native EtherNet/IP™
Sealing Material:
- High-grade Elastomer
