Groth Flame Arresters and Detonation Arresters

Product Overview

Flame arresters are fire safety devices mounted to connecting pipelines or storage vessels which allow media flow but inhibit flame propagation and transmission.   Quenching the flame protects the storage tank, processing equipment, instrumentation and most importantly personnel from catastrophic damage during an uncontrolled ignition event.

Groth offers a full range of deflagration flame arresters as well as detonation arresters which are suitable for both stable and unstable detonations.

Design features of Groth deflagration flame arresters and detonation arresters:

  • Flame element: Made of small parallel passageways that are aligned together to reduce and quench an approaching flame front
  • Housing: Provides the outer structure to position and hold the winding element. Within the housing, the element is supported by rigid beams or grids welded to each end to contain the element winding
  • Seating: Has a counter-bore/pocket design which provides centerline positioning to seat the assembly to the base flanges.  Two non-asbestos gaskets form the seal, one at each end.
  • Base component: Located on each end of the flame arrester, the base components provide connection of the assembly to the pipeline or tank equipment.  Vertical installations typically use a concentric design whereas horizontal mountings typically use eccentric designs.
  • Instrumentation port: All arresters are manufactured with a minimum of one thermowell to contact the face of the element

If you’re looking for a deflagration flame arrester or a detonation arrester for your process application, consider the Groth product line. For more information and to correctly specify your arrester, contact the experts at Cross’s Flow and Safety Technology today!

groth flame arresters

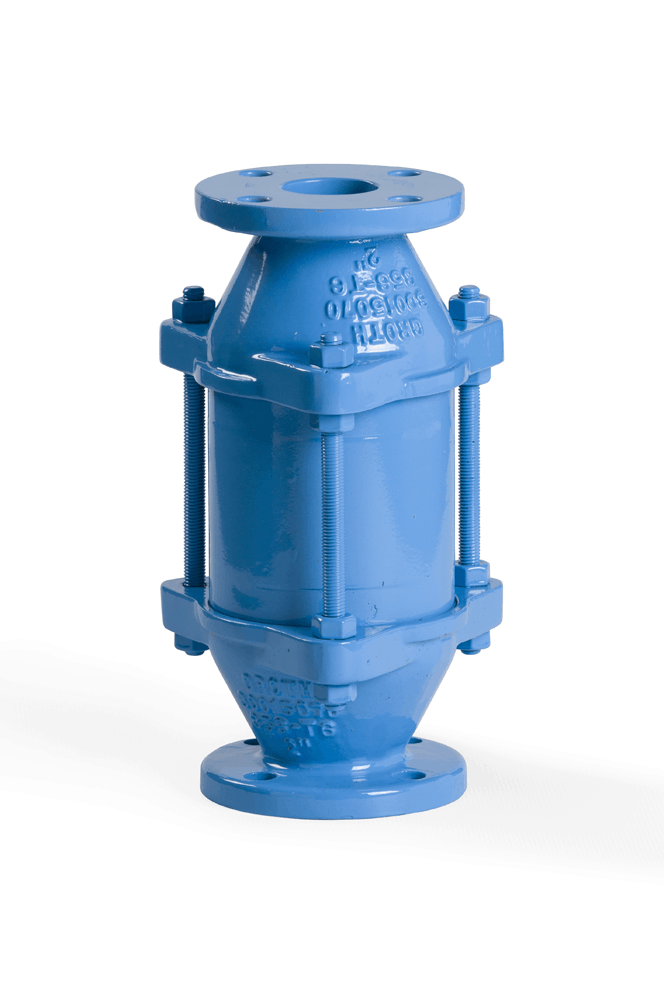

Groth 7618 Vertical, In-Line Flame Arrester
Groth Flame Arresters and Detonation Arresters 1

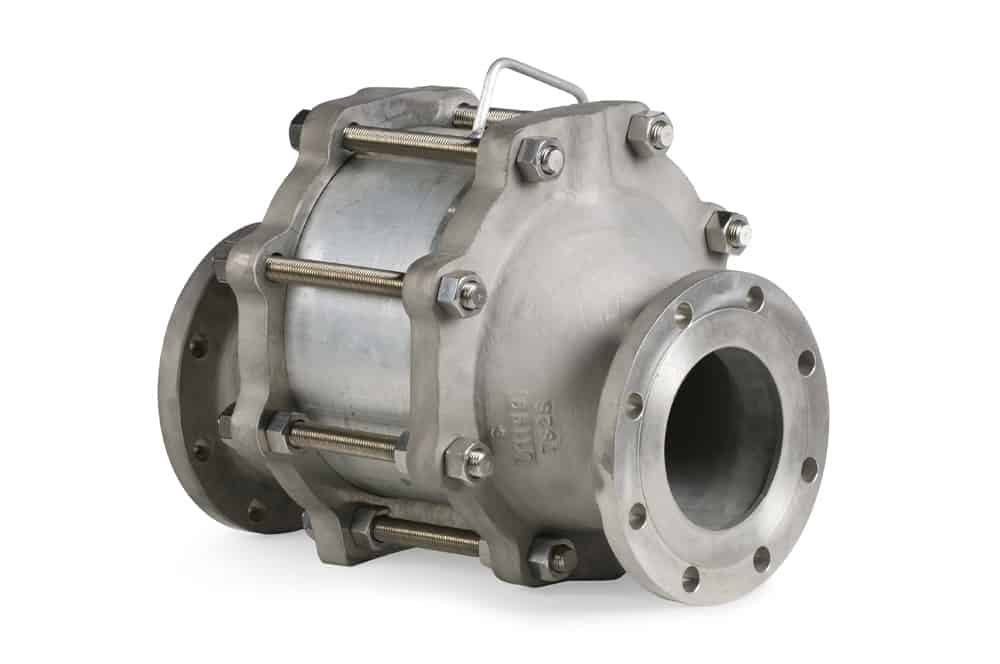

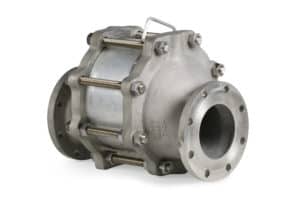

Groth 7628 Horizontal, In-line flame arrester
Groth Flame Arresters and Detonation Arresters 2

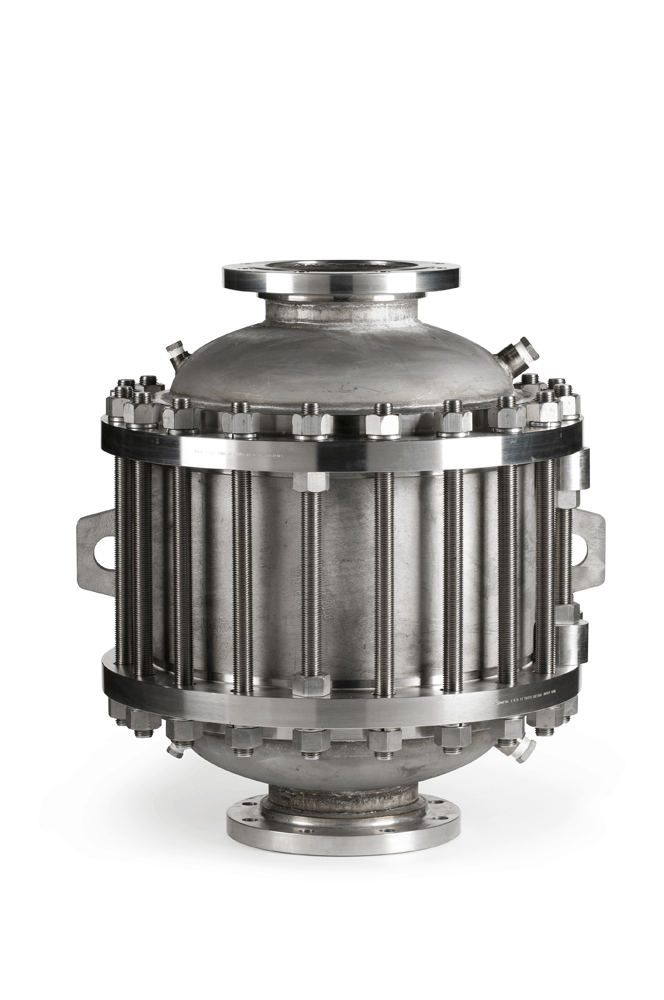

Groth 7658A Flame Detonation Arrester
