Phoenix Contact PC 6 BUS Series Connectors

PC 6 BUS Series Connectors 1

Product Overview

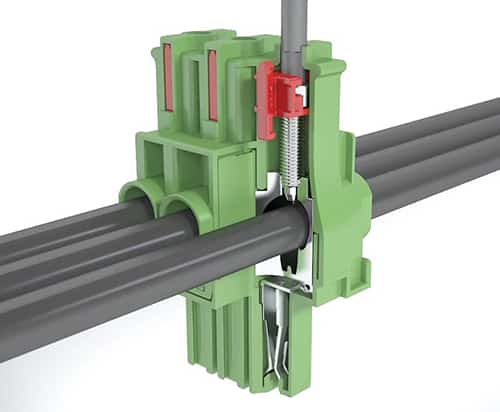

Simple, powerful PCB Connectors

The new PCB connectors from Phoenix Contact are both simple and perfectly suited for high power levels.  The PC 6 BUS series feature insulation displacement connection, or IDC, which is ideal for connecting commercially available 6 AWG conductors without the need for conductor pretreatment.

PC 6 BUS Series Connectors 2

Features and Benefits

  • Design allows for substantial time saving, made possible by wire connection without conductor pretreatment
  • Indicator makes the drive screw position easily recognizable
  • Increased touch protection, even when not mated
  • End caps provide touch safeness and voltage insulation

Technical Data

  • Rated up to 30 A and 600 V UL
  • 7.62-mm pitch
  • 6 AWG

Videos

Technical Resources

Save time and money by using PC 6 BUS Series Connectors in your operation​
