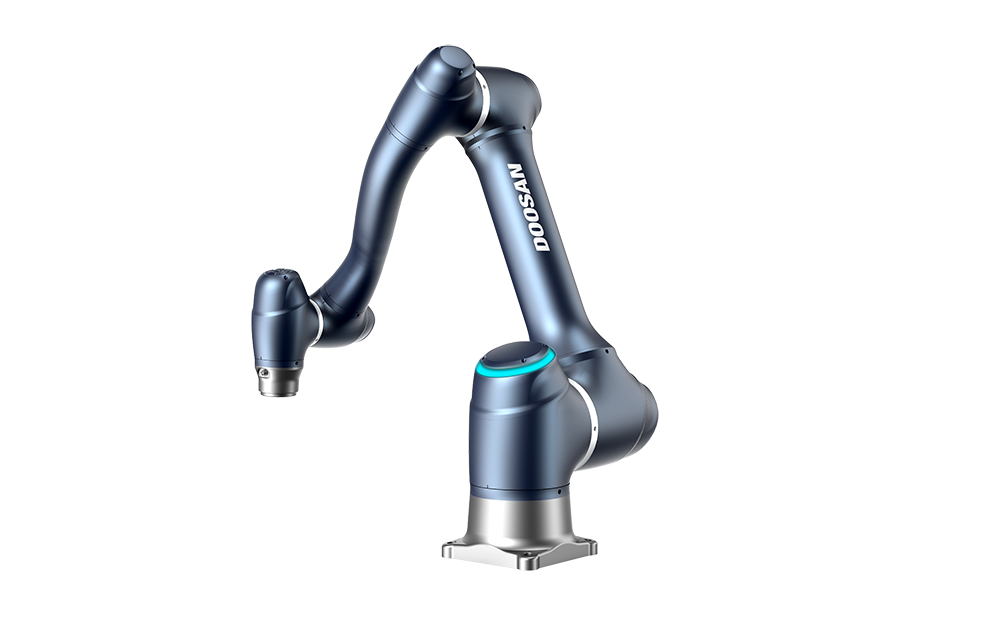

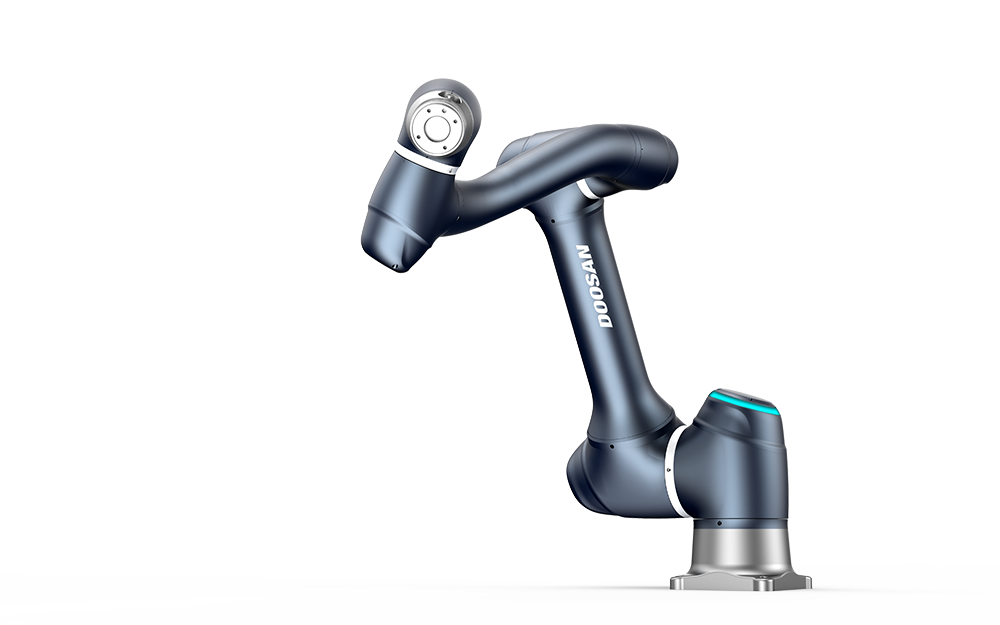

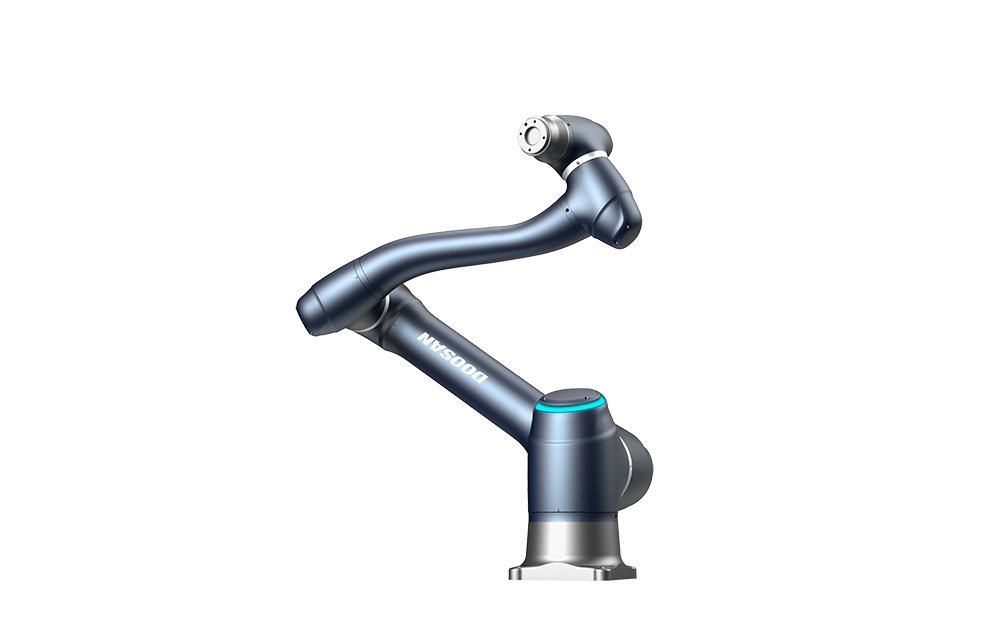

Doosan Robotics A0912 Cobot

Doosan Robotics A0912 Cobot 1

A0912 Overview

Part of the Doosan Robotics A-Series, the A0912 is a collaborative robot offers safety, speed, customization and ROI. An excellent entry point to automating your process, this collaborative robot offers a 9kg payload capacity with a 1200mm reach and repeatability of ±0.05 mm. Also available with a force sensor, the A0902s version of this model can handle delicate tasks which require even greater dexterity. As an authorized distributor for Doosan Robotics Americas, Cross Company is proud to offer A09102 collaborative robots throughout our territories in the U.S. Take a look at all the A-Series has to offer and contact one of our local automation experts to determine which model is right for your operation.

Features and Benefits

Take a look at features and benefits of the Doosan Robotics A0912

Doosan Robotics A0912 Cobot 2

A+ Safety

The advanced safety algorithm ensures the safety beyond the limits of current-based collision detection technology

Doosan Robotics A0912 Cobot 3

A+ Speed

Twice faster joint speed enhances productivity, efficiency and effectiveness on any tasks

Doosan Robotics A0912 Cobot 4

A+ Customization

Force control accuracy of FTS(Force Torque Sensor) is twice as high as competitors, ensuring higher performance and outcome

Doosan Robotics A0912 Cobot 5

A+ ROI

10% faster work speed on average combined with competitive price shortens your ROI period

A0912 Collaborative Robot Specifications

Payload

9 kg / 19.8 lbs

Reach

1200 mm / 47.2 inch

Weight

31 kg / 68.3 lbs

Top Speed

1 m/s

Repeatability

±0.05 mm

Doosan Robotics A0912 Cobot 6
Joint 1

Range: ±360° -  Max Speed: 180°/sec

Joint 2

Range: ±360° -  Max Speed: 180°/sec

Joint 3

Range: ±160° -  Max Speed: 180°/sec

Joint 4

Range: ±360° -  Max Speed: 360°/sec

Joint 5

Range: ±360° -  Max Speed: 360°/sec

Joint 6

Range: ±360° -  Max Speed: 360°/sec

*Hover over each joint to see details.

Joint Range / Speed

The A0912 collaborative robot offers a high level of dexterity with it’s 6 axis setup. Each joint has the range and speed to help maneuver harder to reach places.

Basic Components and Accessories

Available Controllers

Direct Teaching Button

Is Automation Right for Your Process?

Answer a few simple questions and find out! We’ll send a copy of your inputs to help build the case for automation, and determine ROI for automating parts of your operation.

Doosan Robotics A0912 Cobot 7

Applications

Machine Tending

Feed the CNC machine and load/unload the subject into the pallet

Pick and Place

Simple loading/unloading work such as moving objects between tasks

Packaging

Quick product packaging and transporting tasks in electronic, material handling and plastic industry

Inspection

Inspecting internal/external defects and assembly quality

Air Blowing

Exterior cleaning of finished products or workpieces with spiral spray motion and multi-angle composite spray motion

Gluing and Bonding

Spraying of consistent amount of adhesive for gluing and bonding
