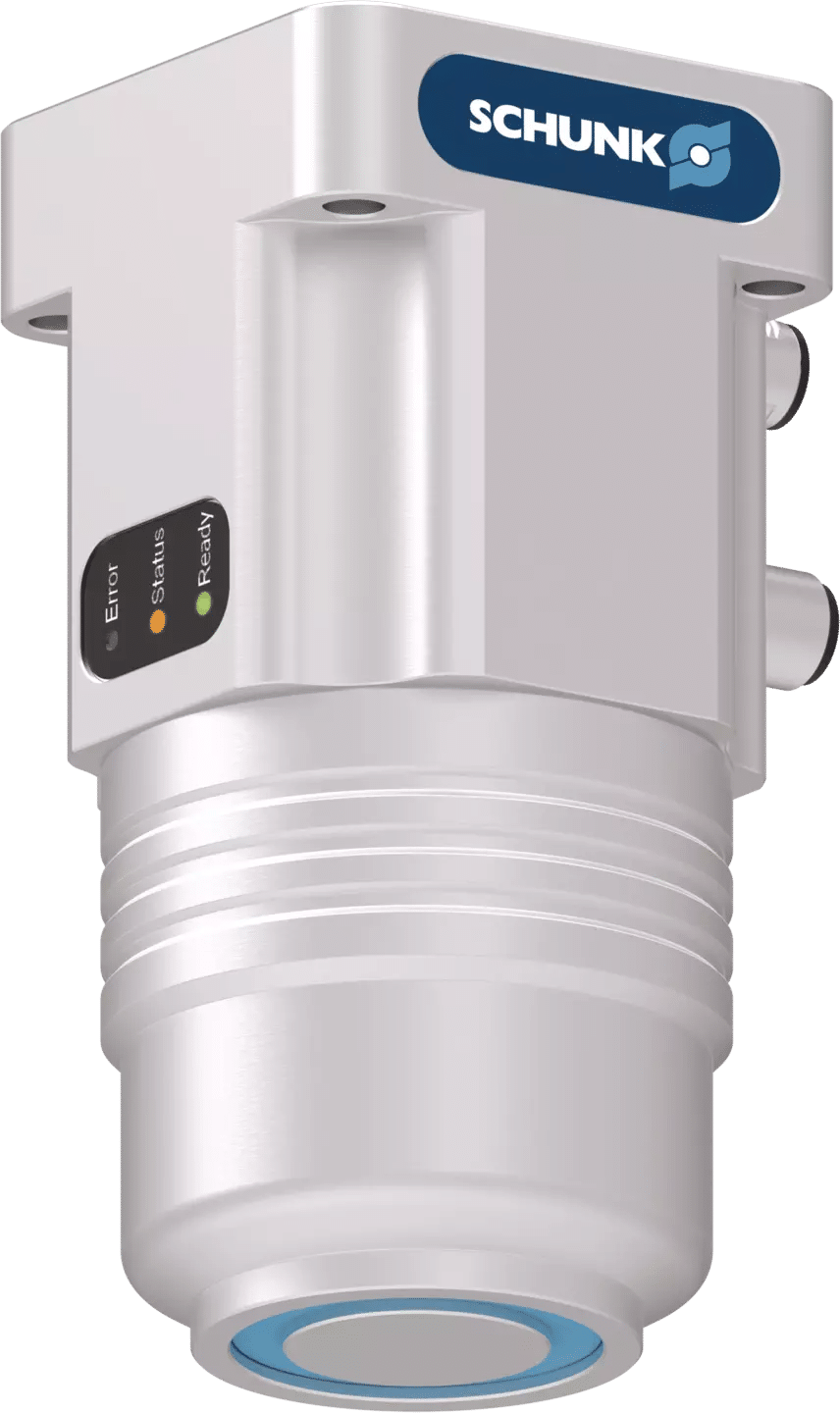

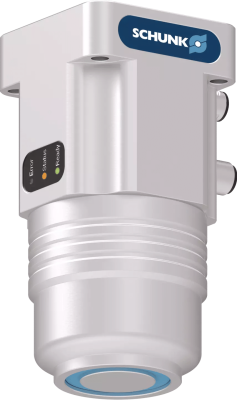

SCHUNK EMH Magnetic Gripper
Product Overview
The SCHUNK EMH is an electro-permanent magnetic gripper for efficient handling of ferromagnetic parts. It features a compact design and is universal, meaning it is able to move a wide range and sizes of parts. The EMH is lightweight yet features strong holding force for reliable part handling.
As distributors, our experts have experience working with top of the line gripping and clamping systems and can work with your team to implement the EMH into your operation. Take a look at some of the key benefits and other resources available for the EMH and request a demonstration or a quote today!
Features and Benefits
Strong gripping force in the smallest footprint
Ideal for reliable part handling in compact machines
Integrated Electronics
No additional controller required
Lightweight
For high dynamics in challenging applications
Maintains holding force
Even during emergency stop scenarios
Four-stage adjustable gripping force
Maximizes the variety of pieces able to be gripped and moved
Control through the 24V power supply
Simplifies the connection and the wiring, while saving energy
Access pieces in any direction
Gripper fingers are unnecessary so workpieces can be accessed from five sides
Specifications
Presence Sensor
Detects the presence of a component. After magnetization, an internal sensor measures the change in the magnetic field. After a corresponding threshold value is exceeded, the workpiece is released.
Process Reliability
The EMH magnetic gripper ensures safe and reliable operation. By changing the polarity of the permanent magnets through short current pulse, the magnetic gripper remains in the selected status, even in case of a power failure or emergency stop.
Gripping Round Components
The EMH magnetic grippers can also be equipped with pole extensions to suit the workpiece. Special pole extensions are available for round components, for example, with prismatic or even with concave contours. The pole extensions are supplied with mounting material.
Variable Holding Force Control
The gripping force can be adjusted in four stages via digital inputs. These enable the gripping and separation of a wide variety of workpieces.Stage 1: 15% holding forceStage 2: 25% holding forceStage 3: 35% holding forceStage 4: 100% holding force
Operating Principle
Magnetization of permanent magnets
Housing Material
Aluminum/steel
Base Jaw Material
Steel
Actuation
Electrical current pulse for activiation and deactivation of the system
