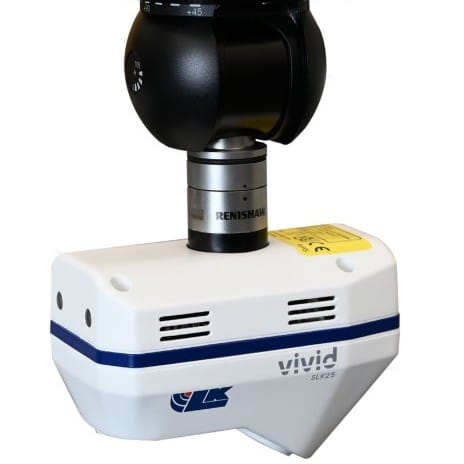

SLK25 Laser Scanner
Product Overview
High Accuracy, High Resolution Blue Laser CMM Scanner
The VIVID laser scanner technology of the SLK25 from LK Metrology provides metrology professionals the opportunity to maximize efficiency when measuring complex surfaces, small details, fragile parts, dark materials, and reflective surfaces. This high-resolution blue laser CMM scanner is able to overcome many of the limitations inherent in tactile inspection and other non-contact technologies.
As manufacturing processes and end-products become more complex, the need to adapt continues to grow in importance. Adaptation to new designs and new materials is a necessary part of meeting increasing demands of manufacturers and quality assurance teams. While the traditional tactile inspection methods are still preferred in many applications, the need for smart solutions continues to grow. By capturing large quantities of high-density data rapidly, laser scanning is able to provide a detailed analysis of the whole part being scanned. This also allows for the easy understanding of graphical evaluation of tolerances.
Modern laser scanners are an increasingly viable alternative to tactile metrology, providing manufacturers with a smarter solution that is able to more fully optimize productivity, accuracy, and versatility across a range of parts, processes, and materials.
If this sounds like something that would benefit your operation, Cross can help. Contact our Precision Measurement team to learn more about the benefits of LK Metrology’s SLK25 laser scanner.
Key Benefits
Certified Accuracy
Fully traceable to international standards for CMM laser scanner accuracy
Variable Scanning Speed
High-density point clouds for small details and high-speed scanning for larger areas
Multiple Exposure Scanning
Measure the most challenging dark, transparent, and reflective surfaces with ease and speed
Automated Programming
Automatically create inspection programs and scanning paths through selecting surfaces on a CAD model
Live Preview
Make measurements and teach programs remotely with real-time feedback of the laser scanner position
Technical Specifications
Accuracy
ISO-10360-8:2013
- Form: 6 μm
- Dispersion: 8 μm
- Size: 10 μm
- Articulated location: 15 μm
- Cone angle: 115°
Productivity
- Points per second: 268,800
- Points per line: 1,920
- Resolution: 12 | 13 | 14 μm (near, mid, far)
- Scan rate: 140 Hz
Form
- 25 points
- Range of the radial distances between the center of a measured sphere and 25 representative points
Dispersion
- 95% of points
- Smallest width of a spherical shell encompassing 95% of the points from a measured sphere
Size
- 25 points
- Difference between the measured diameter of a sphere using 25 representative points and its calibrated diameter
Location
- 5 articulations
- Smallest diameter of a sphere containing the centers of a sphere measured using five probe head positions.
Cone
- Angle
- Region of a sphere on which the measured points are selected during measurement
Technical Features
- Laser class: 2
- Emitted wavelength: 450 nm (blue)
- Max ambient light: 10,000 lx
- Probe head compatibility: PH10M PLUS, PH10MQ PLUS, PHS‐2
- Ingress protection: IP65 (excluding mounting interface)
Industrial Applications
LK Metrology SLK25 VIVID technology CMM laser scanner is ideal for a range of industrial applications
