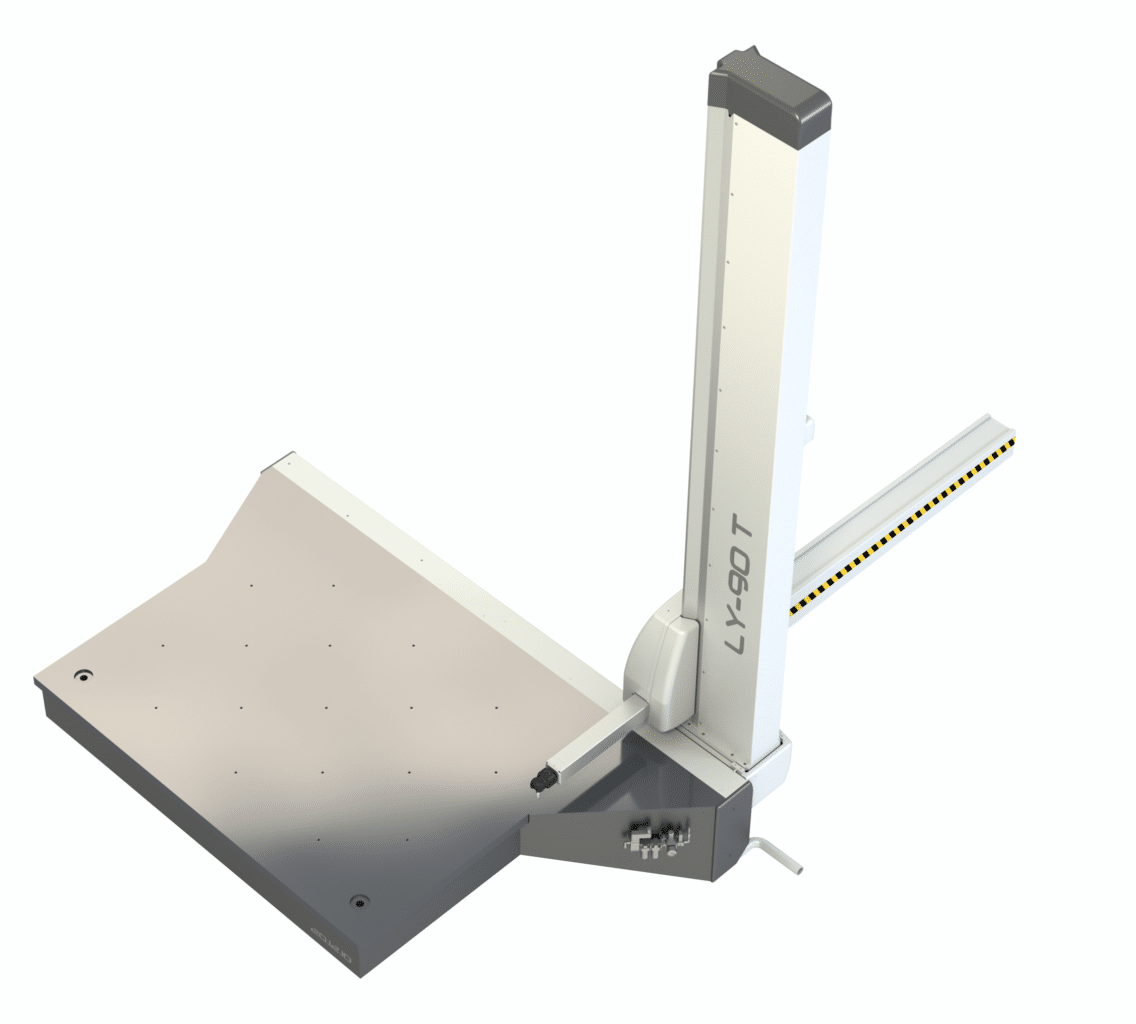

LY-90T Horizontal CMM
Product Overview
The LY-90T by LK Metrology is large format horizontal CMM, designed for measurement of small, medium and large sheet-metal and plastic components. With the integration of a rotary table, cubic and complex geometry parts from various industries can also be inspected. Side mount architectures with integrated work-tables are extremely simple and modular to configure, guaranteeing the flexibility and programmability typical of Coordinate Measuring Machines with the speed and intuitive use of traditional measurement gauges.
As a distributor for LK Metrology in the U.S. the precision measurement group at Cross Company offers the LY-90T Series horizontal CMM throughout our territories and our sales teams can work with your team to determine the best LK Metrology solution for your process. Learn more and schedule a demonstration today!
Features and Benefits
Console Design horizontal arm Series
Measurement system with linear optical transducers
Control of movement through DC servo motors
Air bearings on the YZ axes, precision guideways on the X-axis
Mechanical carrier counterbalance with safety brake
No specific need for foundations unless specifically required
Cast iron work-plates are optionally available
Technical Specifications
The LY-90 T Series is available in 45 standard models with the following YZ axes sections: 10.15 / 12.15 / 15.15 / 15.18 / 15.20 / 15.25 / 16.20 / 16.22 / 16.25
Accuracy (µm): from 10+18L/1000
3D Speed: from 520 mm/sec
3D Acceleration: from 850 mm/sec*
Industrial Applications
LK Metrology LY-90T series horizontal CMMs are ideal for a range of industrial applications.
Available In The Following Areas
With an extensive background in a variety of industries, Cross has relationships with a number of leading brands, including exclusive distributorships in some areas. We are proud to offer LK Metrology in the following areas:
