HD-90 Horizontal CMM
Product Overview

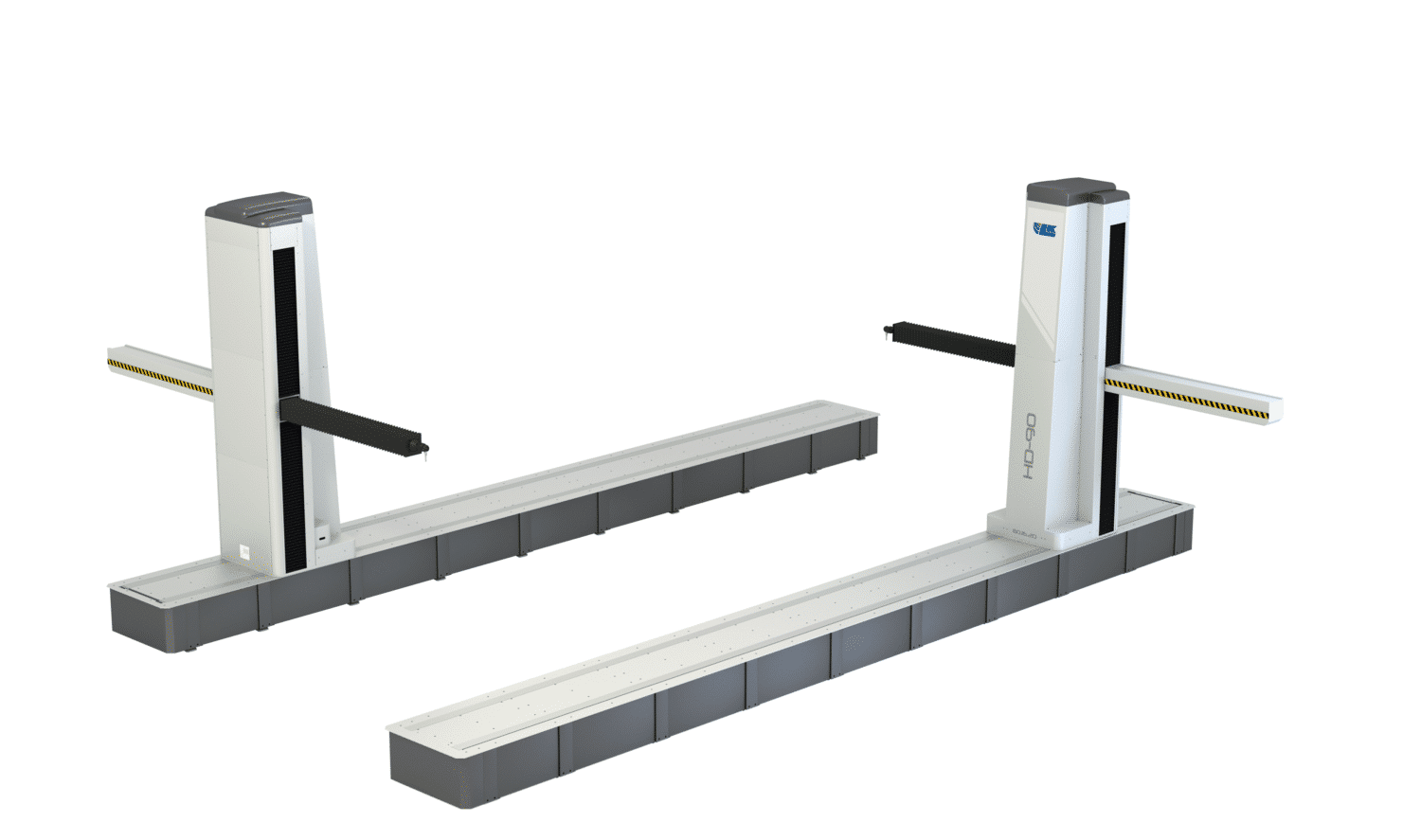

The HD-90 from LK Metrology is a heavy-duty ultra reliable high-performance CMM ready for deployment in production and shop-floor environments. Developed specifically for car-body and sub-assembly quality control applications, the HD-90’s runway design is specifically offers single or double arm configurations. In addition, it is totally encapsulated in protective covers to ensure thermal insulation against environmental changes while protecting the system from the contaminants typically found in a workshop environment.
As a distributor for LK Metrology in the U.S. the precision measurement group at Cross Company offers the HD-90 Series horizontal CMM throughout our territories and our sales teams can work with your team to determine the best LK Metrology solution for your process. Learn more and schedule a demonstration today!
Features and Benefits
Measurement system with linear optical transducers
Control of movement through DC servo motors
Air bearings on the YZ axes, double recirculating bearing guideways on the X-axis
Mechanical carrier counterbalance with safety brake
No specific need for foundations unless specifically required
On the floor or floor-level installations with heavy-duty walkable guideways
Cast iron work-plates and loading/unloading systems are optionally available
Technical Specifications
The HD-90 CMMs Series is available in XX standard sizes with the following YZ axes sections: 16.20 / 16.25 / 16.30
Accuracy (µm): from 14+18L/1000
3D Speed: from 580 mm/sec
3D Acceleration: from 1500 mm/sec
Industrial Applications
LK Metrology HC-90 series horizontal CMMs are ideal for a range of industrial applications.
