HC-90 Horizontal CMM
Product Overview
The outstanding performance of the HC-90, unmatched in the CMM marketplace, gives you bridge machine accuracy, but with the flexibility offered by horizontal arm CMM. Geometric stability at high speed and high acceleration, as well as resistance to harsh environments, cannot be maintained using designs utilizing aluminum or cast-iron guideways with mechanical bearings. Only the HC-90’s ceramic column and spindle running fully on LK air bearing technology can deliver accuracy unparalleled in the industry.
With column height up to 3m and spindle length up to 1.6m (up to 3.2m achievable with twin column installations), the HC-90 is flexible enough to cater for your largest components whilst maintaining high accuracy and unparalleled speed.
As a distributor for LK Metrology in the U.S. the precision measurement group at Cross Company offers the HC-90 Series Horizontal CMM throughout our territories and our sales teams can work with your team to determine the best LK Metrology solution for your process. Learn more and schedule a demonstration today!
Features and Benefits
Versatile Series: The HC 90 Series offers three design options:

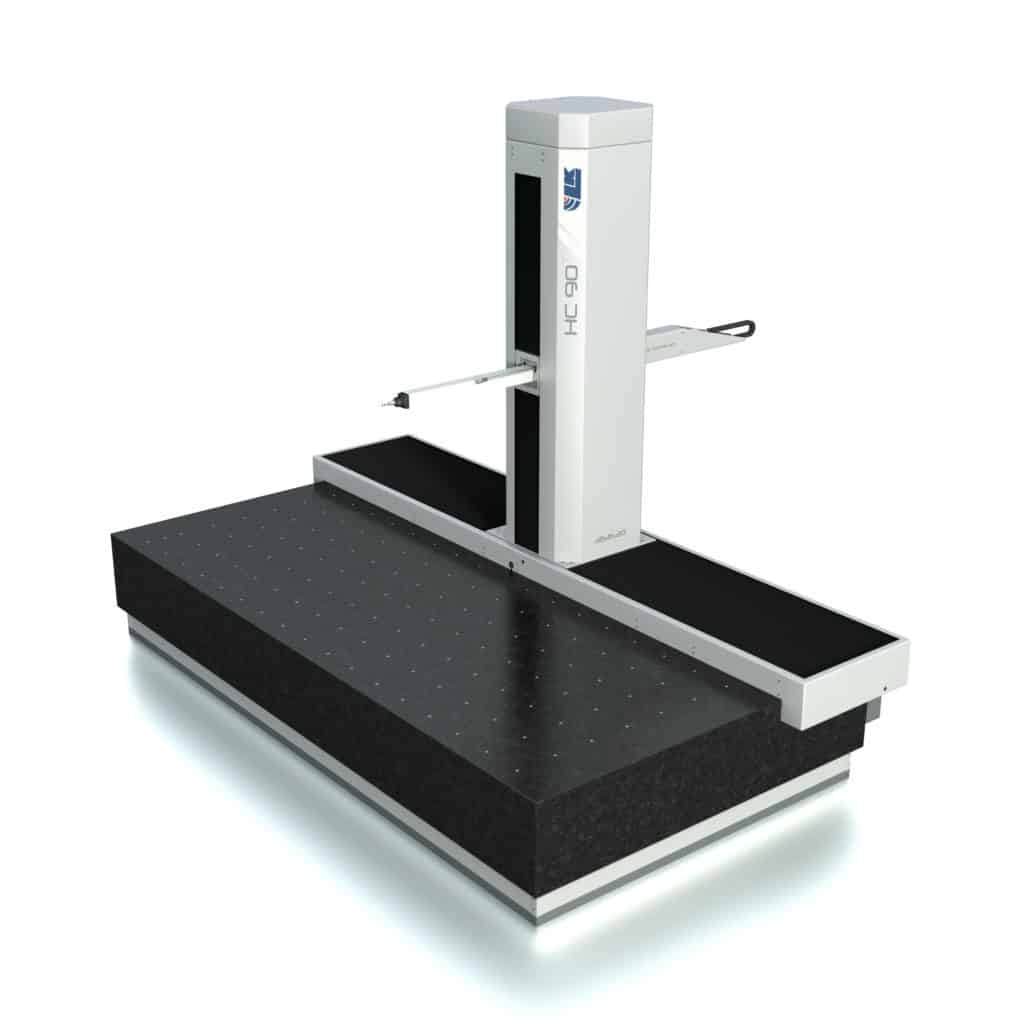

- Top mounted column on a table

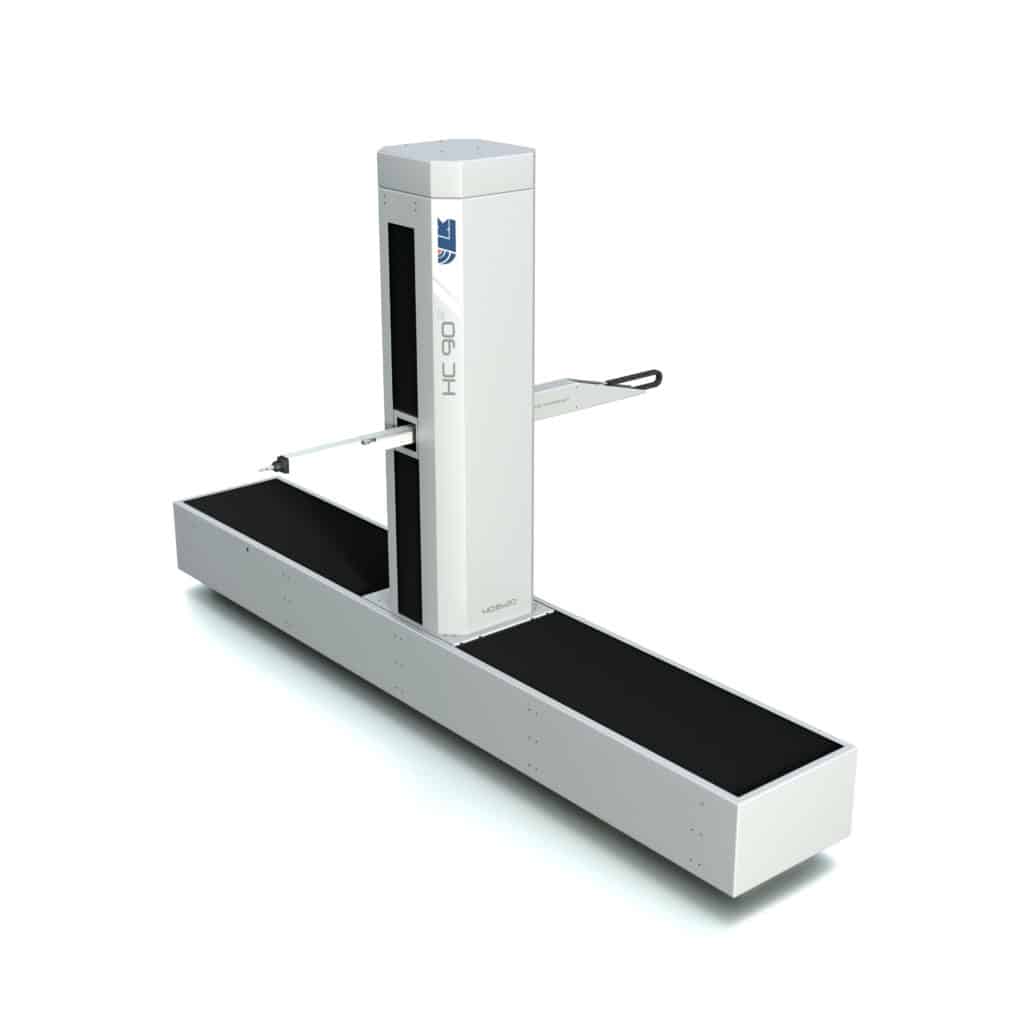

- Single arm column

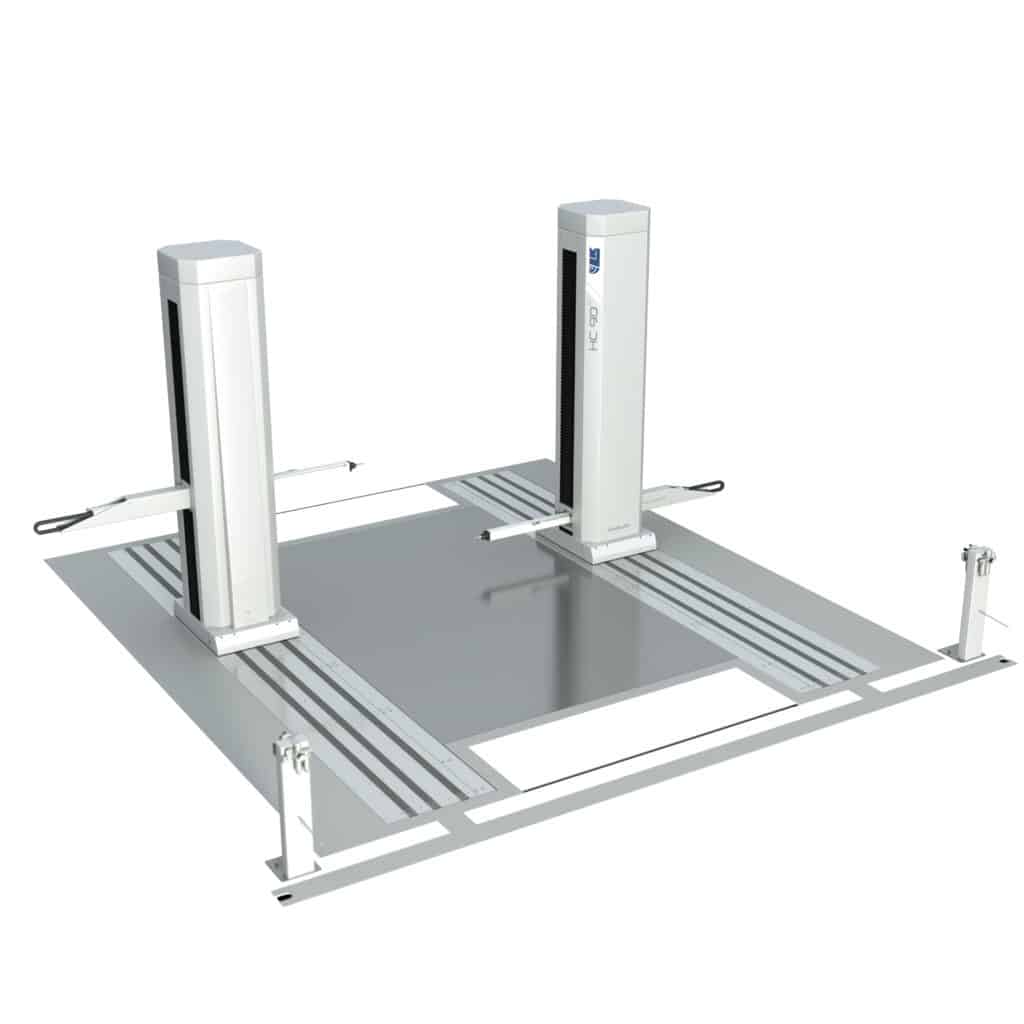

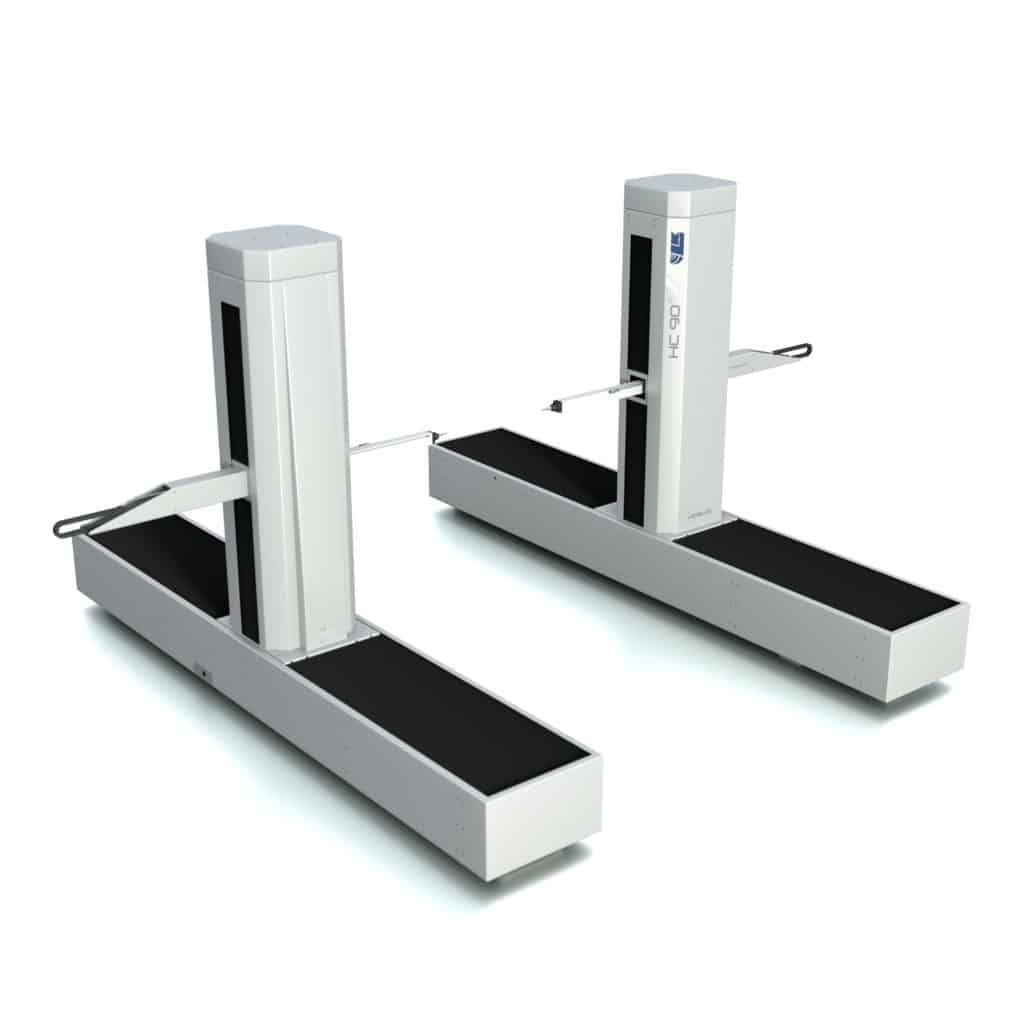

- Twin column floor machines
Workshop Ready: The HC-90 Series have been designed to operate within the workshop, offering the option to install it practically anywhere, even in extreme operating conditions.
Materials Technology: Built with high quality 96% Alumina Ceramic for its exceptional stiffness and thermal characteristics.
Infinite Positioning with PHS:
- ±184° articulation in both axis
- 5-axis moves – CMM and probe head
- Touch probe and laser scanner
- Range of extension arms
- Over travel protection
- Passive change rack
Multi-Sensor Capability: flexibility to match the correct sensor to your application and to access all 6 faces of your component in one single operation
- Indexing and continuous probe heads
- Touch-trigger probes
- Continuous scanning probes
- Non-contact sensors X-axis
Rotary Tables: Optionally available is the integration of a 4th axis unit from 4 to 8 position index rotary table through to fully 360º air lift rotary tables and high accuracy multi-positioning indexing tables.
Automation Compatible: Machine enclosures, with or without environmental conditioning, can be supplied as fully interlocked units working together with a part loading device. Automatic work-piece recognition systems and anti-collision devices are also available for complete integration with host controllers for full FMS operation.
Technical Specifications
Ceramic Y and Z guide way
High efficiency air bearings
Zero hysteresis friction drives
Very High Available Uptime
Volume Range Table Version: 1000x400x600 to 4000x1600x2000
Volumetric Accuracy from 1.9 +L/250
Speed from 850 mm/sec
Acceleration from 3800 mm/sec*
Volume Range Rail Version: 4000x1200x1000 to 10000x1600x2500
Volumetric Accuracy from 8.0+L/200
Speed from 40 m/min
Acceleration from 7580 m/min*
Industrial Applications
LK Metrology HC-90 series horizontal CMMs are ideal for a range of industrial applications.
