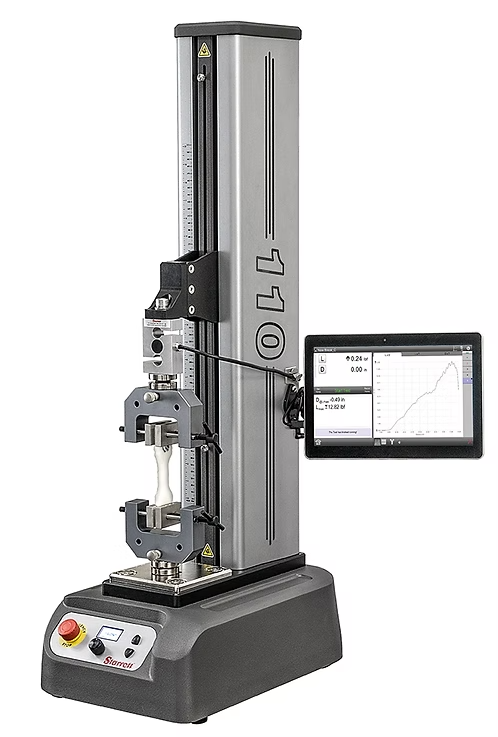

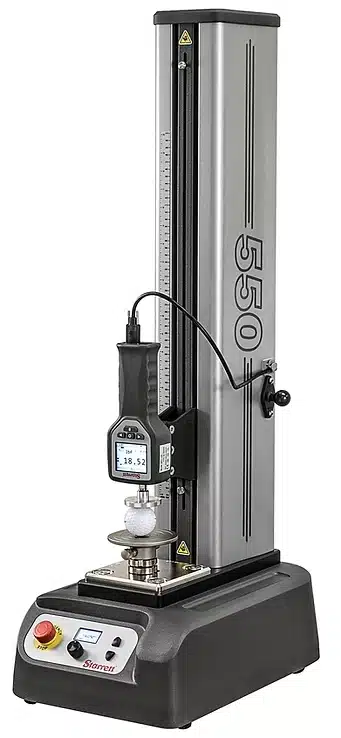

Starrett FMM Single Column Motorized Test Stand
Product Overview
In modern high-volume production environments, inconsistent force testing can lead to costly rework and compromised product integrity. The Starrett FMM Motorized Test Stand addresses this challenge by providing a compact, highly repeatable platform for tension and compression testing. Designed specifically for lean manufacturing cells, the FMM series allows quality teams to transition from manual testing to automated precision, ensuring every measurement is documented and accurate.
As a trusted measurement partner, Cross Company Precision Measurement is dedicated to ensuring the accuracy and reliability of your quality control processes. As a 100% employee-owned organization, our team treats your success as our own, providing the technical expertise and world-class service needed to reduce risk and maintain compliance. When you work with Cross, you’re gaining a partner committed to precision and integrity in every measurement.
Features and Benefits
Improve Product Quality: High-precision crosshead position accuracy (better than 20µm) ensures that every force test is performed under identical conditions for maximum data integrity.
Raise Operational Efficiency: The compact “lean” footprint allows this stand to be integrated directly into production lines, reducing the time spent transporting samples to a central lab.
Lower Compliance Risk: When paired with Starrett L1 software, the system provides traceable, digital data exports that satisfy rigorous regulatory and audit requirements.
Mitigate Equipment Damage: Integrated magnetic travel limits and overload protection safeguards sensitive load cells and expensive fixtures from operator error.
Flexible Application Range: Support for tension, compression, shear, and friction testing allows one stand to serve multiple QC functions across different product lines.
Reduced Training Time: An intuitive OLED interface and tactile jog keys allow operators to master the system quickly, minimizing the risk of setup errors.
Enhanced Repeatability: Motorized control eliminates the human variables associated with manual lever-operated stands, delivering more consistent results across different shifts.
Scalable Capability: Easily switch between basic digital force gage control and full computer-based analysis to meet evolving testing needs.
Specifications
Force Capacities: Available in 110lbf (500N), 330lbf (1500N), and 550lbf (2500N) configurations.
Vertical Travel: Standard 20-inch (508mm) or Extended 30-inch (762mm) travel options.
Test Speeds: Configurable from 0.002 to 40 in/min (0.05 to 1016 mm/min).
Position Accuracy: Better than 20µm (0.0008 in) at full load and maximum speed.
Base Plate Mounting: Metric base plate with M4, M6, M10, and M12 thread patterns for fixture flexibility.
Communication: Dual connectivity via USB 2.0 and RS-232 ports for data export.
Power Requirements: Universal power supply (110V/240V) for global facility compatibility.
