TurnCheck Series-6 Shaft Measuring System
Product Overview

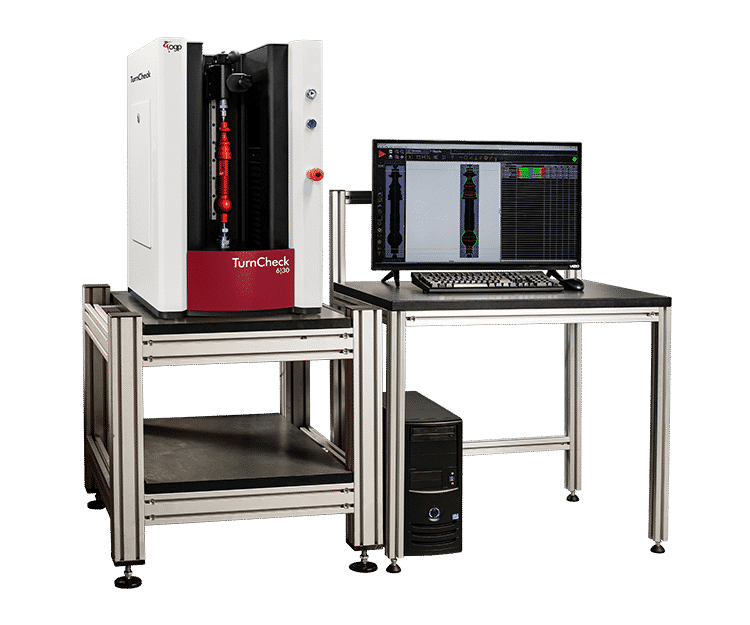

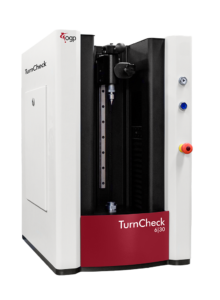

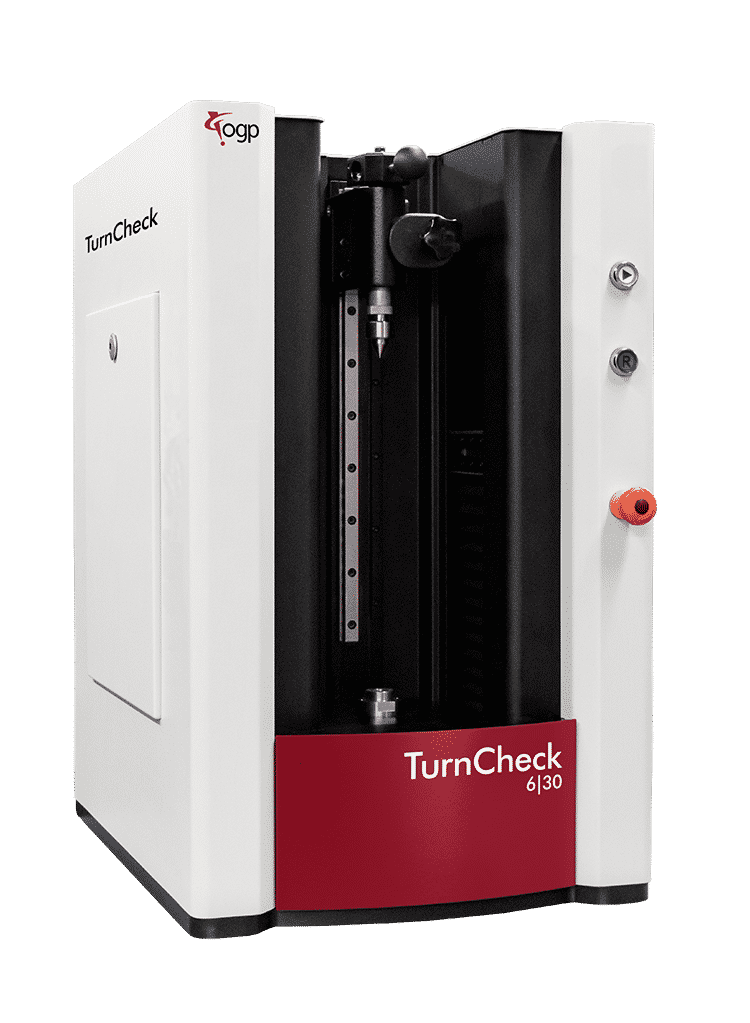

The TurnCheck™ Series-6 is a tabletop precision optical shaft measuring system built for shop floor environments. Rugged and reliable, The TurnCheck 6 Series accommodates parts up to 300 mm in length and includes:
- Completely telecentric, large field of view optical system
- The ability to measure diameters as large as 60 mm and lengths up to 300 mm
- Fast, easy measurements of all critical dimensions of turned parts, from simple lengths and diameters to advanced profile fitting and form
- Optional ±15° of motorized helix angle adjustment for correct thread form measurements
As a distributor for OGP, Cross offers TurnCheck systems throughout several of our territories in the U.S. Worth with one of our precision measurement experts today to determine which TurnCheck system is best for your operation!
Previous
Next
Features and Benefits
- TurnCheck system software offers advanced image analysis technology for high speed optical measurement.
- Automatic feature extraction immediately finds and measures all part features in a single scan.
- Fast and precise measurement of known and unknown parts without programming or a CAD model.
- GD&T and best-fitting, and can output all point data for external analysis or reverse engineering.
- The movable tailstock assembly is designed to be easily operated with one hand for precision mechanical alignment of the workpiece.
- Additional optional workholding kits that fit into the spindle accommodate workpieces that do not have centers.
