SmartScope ZIP 450
Product Overview

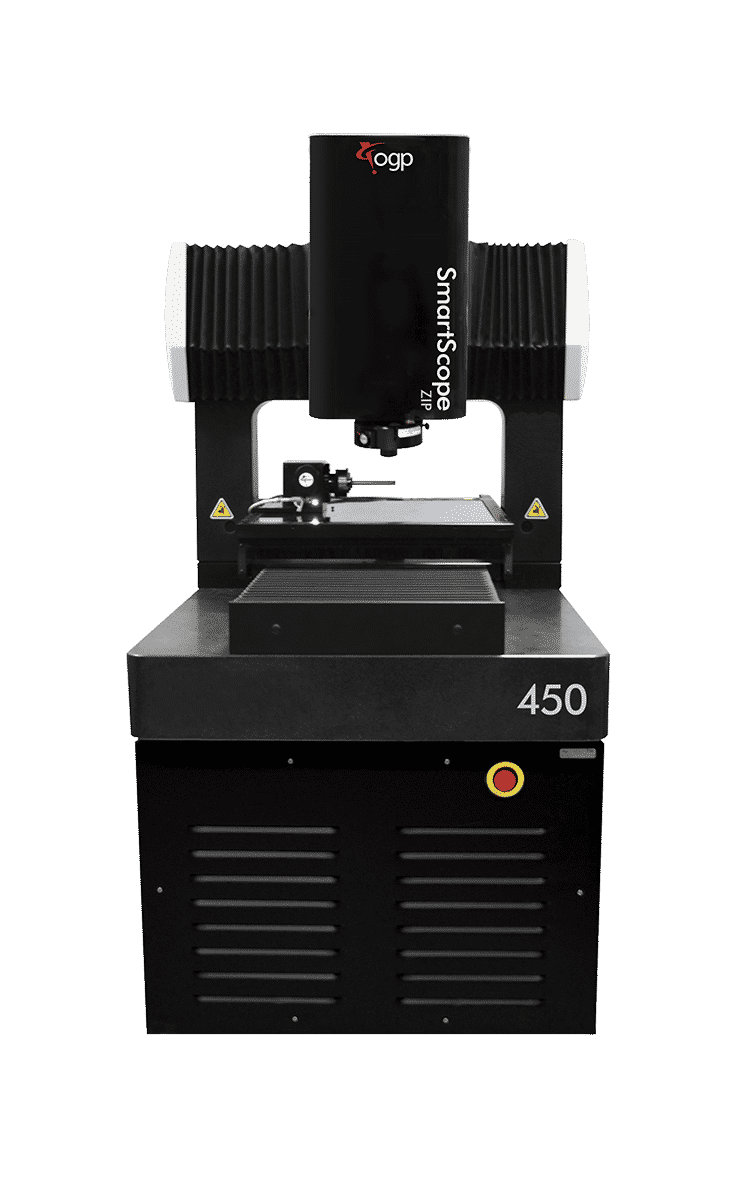

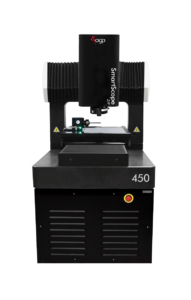

The SmartScope ZIP® 450 is a floor standing digital measuring system offering video and multisensor measurement for large parts and offers Cross customers an excellent option for measuring large parts with speed and efficiency. This OGP system has a reputation for extreme reliability and proven metrological performance. Traditionally strong in video measurement, it is also available with contact and non-contact probes, as well as the unique switchable TTL laser.
Like all of the other systems in the SmartScope ZIP line, the SmartScope ZIP 450 is equipped with 7:1 AccuCentric®zoom optics and offers mult-sensor capability for the ultimate flexibility in measurement for a wide variety of industrial applications.
As a distributor for OGP, our precision measurement group offers the full line of SmartScope Zip systems throughout several of our sales territories in the U.S. For more information about the OGP products we offer, or to get a quote for new equipment, contact a local team member today.
Features and Benefits:
- Accurate video metrology – 7:1 AccuCentric® motorized zoom lens automatically calibrates with every magnification change
- Robust design – A granite base and bridge provide a rigid, orthogonal structure for measurement stability
- Multisensor versatility – Optional non-contact sensors and touch probes
Specifications
| SmartScope Zip 450 Measuring Ranges/Travel | ||
| mm | in | |
| X Axis | 450 | 17.71 |
| Y Axis | 450 | 17.71 |
| Z Axis | 200 | 7.87 |
| Extended Y (Optional) | 610 | 24.01 |
| Extended Z (Optional) | 300 | 11.81 |
- Area Accuracy: (1.8 + 4L/1000) µm
- Volumetric Accuracy: (2.8 + 6L/1000) µm
- Z Accuracy: up to (1.3 + 5L/1000) µm
- Overall Equipment Size and Footprint
- Max Height: 2060 mm (81.1 in)
- Max Width: 1085 mm (42.71 in)
- Max Depth: 1650 mm (64.96 in)
- Weight: 1039 Kg (2290.60 lbs)
- Power Requirements: 115/230 vac, 50/60 Hz 1 phase, 700 W
- Software Options:
- Metrology Software: ZONE3® or ZONE3 Pro, MeasureMind® 3D MultiSensor, Measure-X®, VMS™, Elements®
- Productivity Software: MeasureFit® Plus, SmartFit® 3D, SmartProfile®
- Offline Software: ZONE3, MeasureMind 3D MultiSensor, Measure-X, VMS
