Rice Lake iDimension PWD Pallet Weighing and Dimensioning System
Product Overview

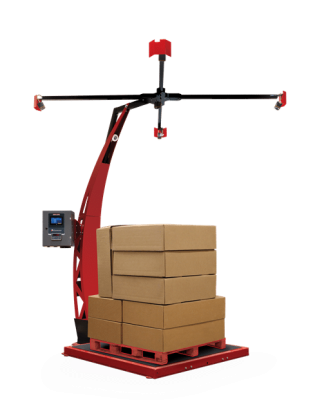

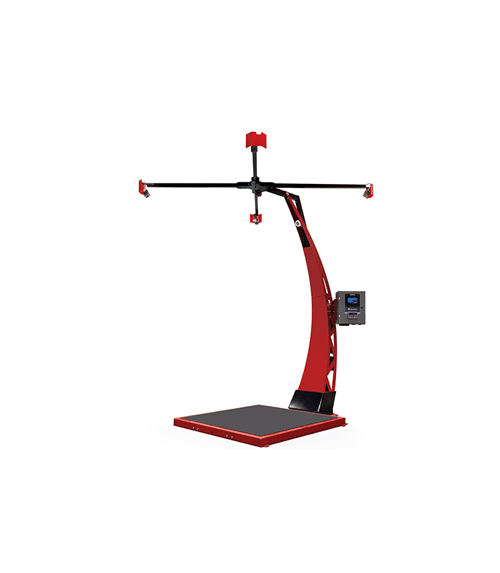

The iDimension PWD Pallet Weighing and Dimensioning System by Rice Lake is a cutting-edge solution designed to streamline the process of measuring and weighing palletized shipments. This system integrates a 5×5 ft floor scale with a 5,000 lb capacity and advanced dimensioning technology, ensuring accurate weight and dimensional data in under two seconds. With features like a high-resolution camera and simple API network integration, the iDimension PWD enhances operational efficiency, reduces the risk of carrier noncompliance fees, and ensures accurate freight invoicing. With optional accessories like access ramps and barcode scanners, make it a versatile and user-friendly choice for logistics and shipping operations.
At Cross Company, we pride ourselves on delivering not just products but complete solutions tailored to your needs. Our commitment to exceptional customer service, technical expertise, and industry-leading support sets us apart as a trusted distributor for your business.
Features and Benefits
Integrated Scale and Dimensioning: Combines a 5×5 ft floor scale with a 5,000 lb capacity for seamless weight and dimension capture.
Fast and Accurate: Measures and weighs pallets in under two seconds, improving operational efficiency.
Pallet Tare Mode: Excludes pallet weight from measurements (not Legal for Trade), ensuring precise data.
High-Resolution Camera: Captures detailed images of freight condition at the time of shipment.
Simple Network Integration: Features a web server interface with configurable capture definitions via HTTP requests and XML parsing.
Optional Accessories: Includes options for a second camera, barcode scanner, access ramps, and an overhead sensor for reflective or black shrink wrap.
Specifications
Measurement Range: Min: 6 × 6 × 6 in; Max: 72 × 72 × 72 in.
Weight Capacity: 5,000 lb.
Measurement Increment: 0.5 in (1 cm).
Performance: Captures weight and dimensions in two seconds or less.
Power Requirements: 110 to 240 VAC with a 25 ft power cable.
Operating Temperature: 14 °F to 104 °F (-10 °C to 40 °C).
Humidity: 0 to 90% non-condensing.
Warranty: Two-year limited warranty, with an extended warranty available.
Applications
Logistics and Warehousing: Streamline palletized shipment processing by quickly capturing weight and dimensions for accurate freight billing and inventory management.
Freight and Shipping : Ensure compliance with carrier requirements and avoid noncompliance fees by providing precise dimensional and weight data.
Manufacturing Facilities: Optimize outbound shipping processes by integrating the system into ERP or WMS platforms for seamless data transfer.
Food and Beverage: Handle palletized shipments of perishable goods with speed and accuracy to maintain supply chain efficiency.
Pharmaceutical and Healthcare: Ensure precise measurements for sensitive or regulated shipments.
Recycling and Waste Management: Measure and weigh palletized recyclable materials or waste for accurate reporting and billing.
Aerospace and Automotive: Process heavy and oversized palletized components with ease and precision.
