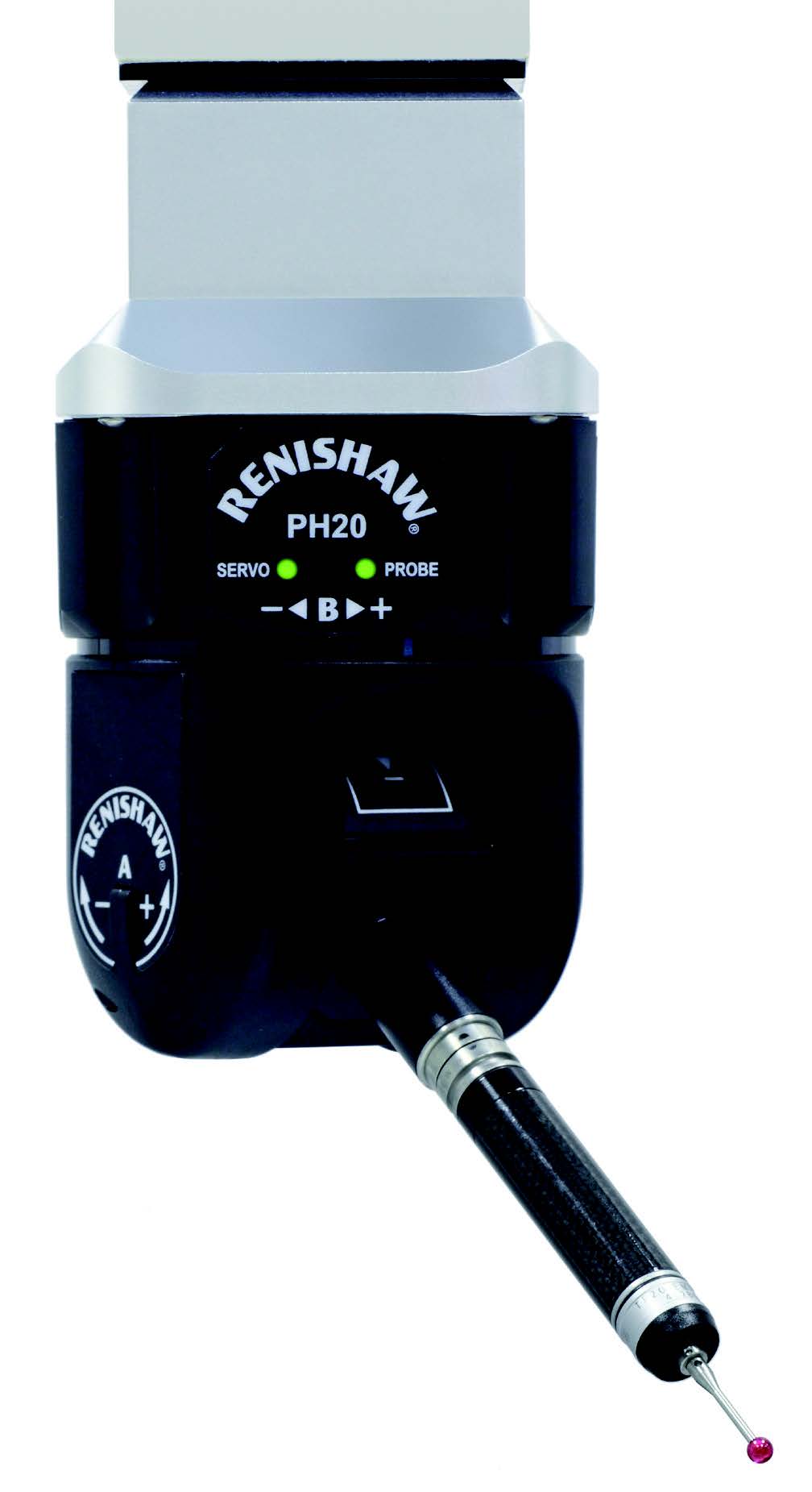

PH20 5-Axis Touch-Trigger System

Renishaw Logo

Product Overview

The PH20 5-Axis Touch Trigger System by Renishaw revolutionizes coordinate measuring machine (CMM) performance by offering rapid, accurate, and flexible measurement capabilities. Designed to enhance productivity and efficiency, the PH20 system is ideal for a wide range of industrial applications, including automotive, aerospace, and precision manufacturing.

At Cross Co., we are committed to providing our customers with the best metrology solutions. Our partnership with Renishaw allows us to offer the latest in CMM technology, backed by our expert support and service. We work closely with our clients to understand their specific needs and provide tailored solutions that enhance their measurement capabilities and improve their overall quality control processes.

Key Benefits

5-Axis Motion: The PH20 system utilizes 5-axis motion to minimize CMM movement, significantly reducing inspection cycle times and improving throughput.

Touch Trigger Technology: Offers precise touch-trigger measurement, ensuring high accuracy and repeatability for complex parts and features.

Infinite Positioning: Provides infinite positioning capability, allowing for optimal probe orientation and access to difficult-to-reach features.

Automatic Calibration: Features automatic probe calibration, reducing setup time and ensuring consistent measurement accuracy.

Modular Design: Compatible with a wide range of Renishaw probes, enhancing versatility and adaptability for various measurement tasks.

Technical Specifications

Maximum Movement Speed: 3 revs/s (1281 mm/s with standard module & 10 mm stylus)

Maximum Head Touch Speed: 50 mm/s

Rotation angles:

  • A axis: -115° to 115°
  • B axis:  ∞

Angular resolution: 0.4 μRadians

Bearings: Mechanical

Change Rack System: MCR20 NI and MCR20

Industrial Applications

LK Metrology ALTO series CMMs are ideal for a range of industrial applications.

Marine Equipment

Available In The Following Areas

With an extensive background in a variety of industries, Cross has relationships with a number of leading brands, including exclusive distributorships in some areas. We are proud to offer Renishaw in the following areas:

Videos

More information From Renishaw

Interested in learning more? Contact a Cross team member today to discuss your application and see how we can help your operation!
