SmartScope Zip Lite 300
Product Overview

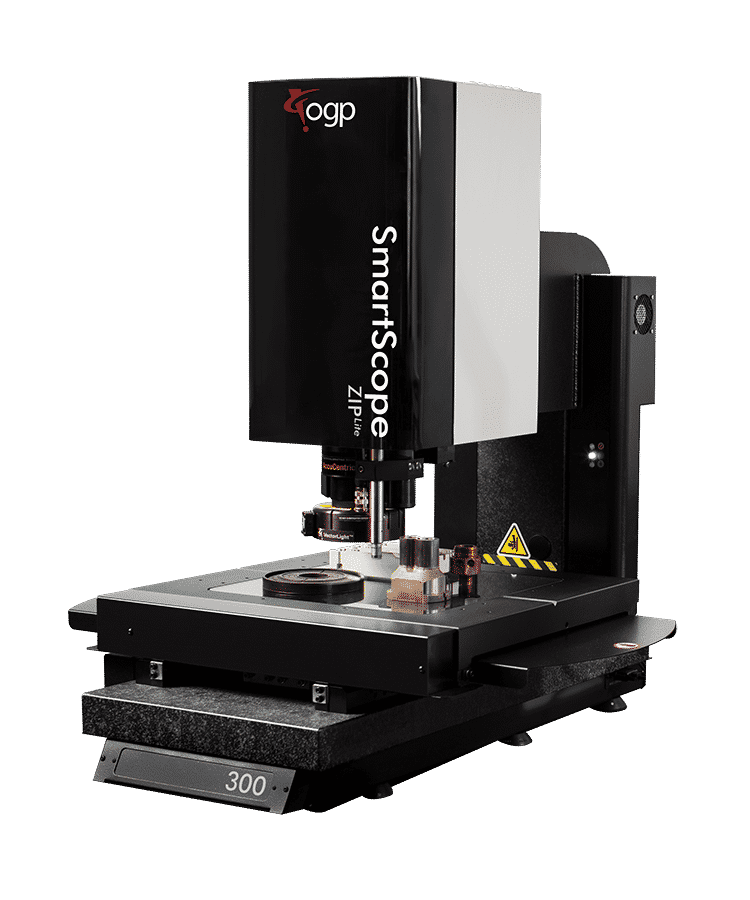

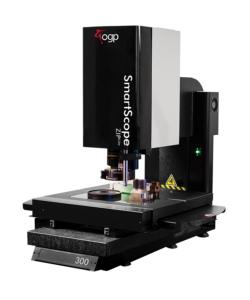

The SmartScope ZIP Lite 300 is similar to the SmartScope ZIP Lite 250 benchtop model, but has an expanded XYZ measurement volume of 300 x 300 x 150 mm. Like the 250, it features a joystick controlled precision mechanical bearing motorized stages and 0.5 µm linear scales mounted to a granite base and column, providing metrological stability and measurement precision.
Its patented AccuCentric® 7:1 motorized zoom lens auto-calibrates itself with every magnification change, over the life of the measurement system. The zoom lens keeps images in focus and on-axis throughout its zoom range, and a variety of optional lens attachments and adapter tubes expand the magnification range, for additional value and versatility.
LED coaxial and profile illumination combine with the patented white-LED SmartRing™ programmable ring light to provide lighting adaptable to a variety of measurement conditions. Like all of the other systems in the OGP SmartScope ZIP series, the SmartScope ZIP Lite 300 offers multi-sensor capability, or DRS™ laser support for the ultimate flexibility in measurement for a wide variety of industrial applications.
As a distributor for OGP, our precision measurement group offers the full line of SmartScope Zip systems throughout several of our sales territories in the U.S. For more information about the OGP products we offer, or to get a quote for new equipment, contact a local team member today.
Features and Benefits:
- Accurate video metrology – 7:1 AccuCentric® motorized zoom lens autocalibrates with every magnification change
- Built for the shop floor – Rugged construction with rigid granite base and column, hardened worktable, and heavy duty mechanical slides
- Multi-sensor versatility – Optional non-contact sensors and touch probes
- Cost-effective and capable – SmartScope ZIP Lite is the cost-effective way to get the benefits of automatic inspection and measurement
Specifications
| SmartScope Zip Advance 250 Measuring Ranges/Travel | ||
| mm | in | |
| X Axis | 300 | 11.81 |
| Y Axis | 300 | 11.81 |
| Z Axis | 150 | 5.90 |
- Area Accuracy: up to (2.0 + 6L/1000) µm
- Z Accuracy: up to (2.5 + 5L/1000) µm
- Overall Equipment Size and Footprint
- Max Height: 870 mm (34.25 in)
- Max Width: 760 mm (29.92 in)
- Max Depth: 960 mm (37.79 in)
- Weight: 175 Kg (385.80 lbs)
- Power Requirements: 115/230 vac, 50/60 Hz, 1 phase, 300 W
- Software Options:
- Metrology Software: ZONE3® or ZONE3 Pro, MeasureMind® 3D MultiSensor, Measure-X®, VMS™, Elements®
- Productivity Software: MeasureFit® Plus, SmartFit® 3D, SmartProfile®
- Offline Software: ZONE3, MeasureMind 3D MultiSensor, Measure-X, VMS
