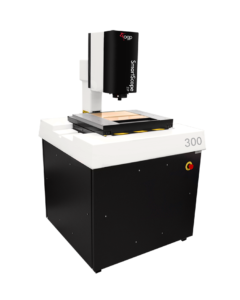

SmartScope ZIP 300
Product Overview
The SmartScope ZIP® 300 is a fast and accurate floor standing digital measurement system that brings Cross customers the accuracy and efficiency needed to measure artifacts in a variety of industrial applications.
This durable floor standing system features fast DC servo motor drives that propel the stage quickly, reducing cycle times. In addition, a rigid cast iron base ensures stability and metrological accuracy. The SmartScope ZIP 300 is also available with an optional 300 mm of Z-axis travel.
Like all of the other systems in the SmartScope ZIP line, the SmartScope ZIP 300 is equipped with 7:1 AccuCentric®zoom optics and offers mult-sensor capability for the ultimate flexibility in measurement for a wide variety of industrial applications.
As a distributor for OGP, our precision measurement group offers the full line of SmartScope Zip systems throughout several of our sales territories in the U.S. For more information about the OGP products we offer, or to get a quote for new equipment, contact a local team member today.
Features and Benefits:
- Accurate video metrology – 7:1 AccuCentric® motorized zoom lens automatically calibrates with every magnification change
- Robust design – Heavy-duty cast base and integral compound stage with Y-axis center drive for stability
- Multisensor versatility – Optional touch probes, lasers, and micro-probes
Specifications
| SmartScope Zip 300 Measuring Ranges/Travel | ||
| mm | in | |
| X Axis | 300 | 11.81 |
| Y Axis | 300 | 11.81 |
| Z Axis | 200 | 7.87 |
| Extended Z (Optional) | 300 | 11.81 |
- Area Accuracy: (1.5 + 5L/1000) µm
- Z Accuracy: up to (1.4 + 5L/1000) µm
- Overall Equipment Size and Footprint
- Max Height: 1800 mm (70.86 in)
- Max Width: 1010 mm (39.76 in)
- Max Depth: 1060 mm (41.73 in)
- Weight: 750 Kg (1653.47 lbs)
- Power Requirements: 115/230 vac, 50/60 Hz
- Software Options:
- Metrology Software: ZONE3® or ZONE3 Pro, MeasureMind® 3D MultiSensor, Measure-X®, VMS™, Elements®
- Productivity Software: MeasureFit® Plus, SmartFit® 3D, SmartProfile®
- Offline Software: ZONE3, MeasureMind 3D MultiSensor, Measure-X, VMS
