Ultra – Large Volume Gantry CMM
Product Overview

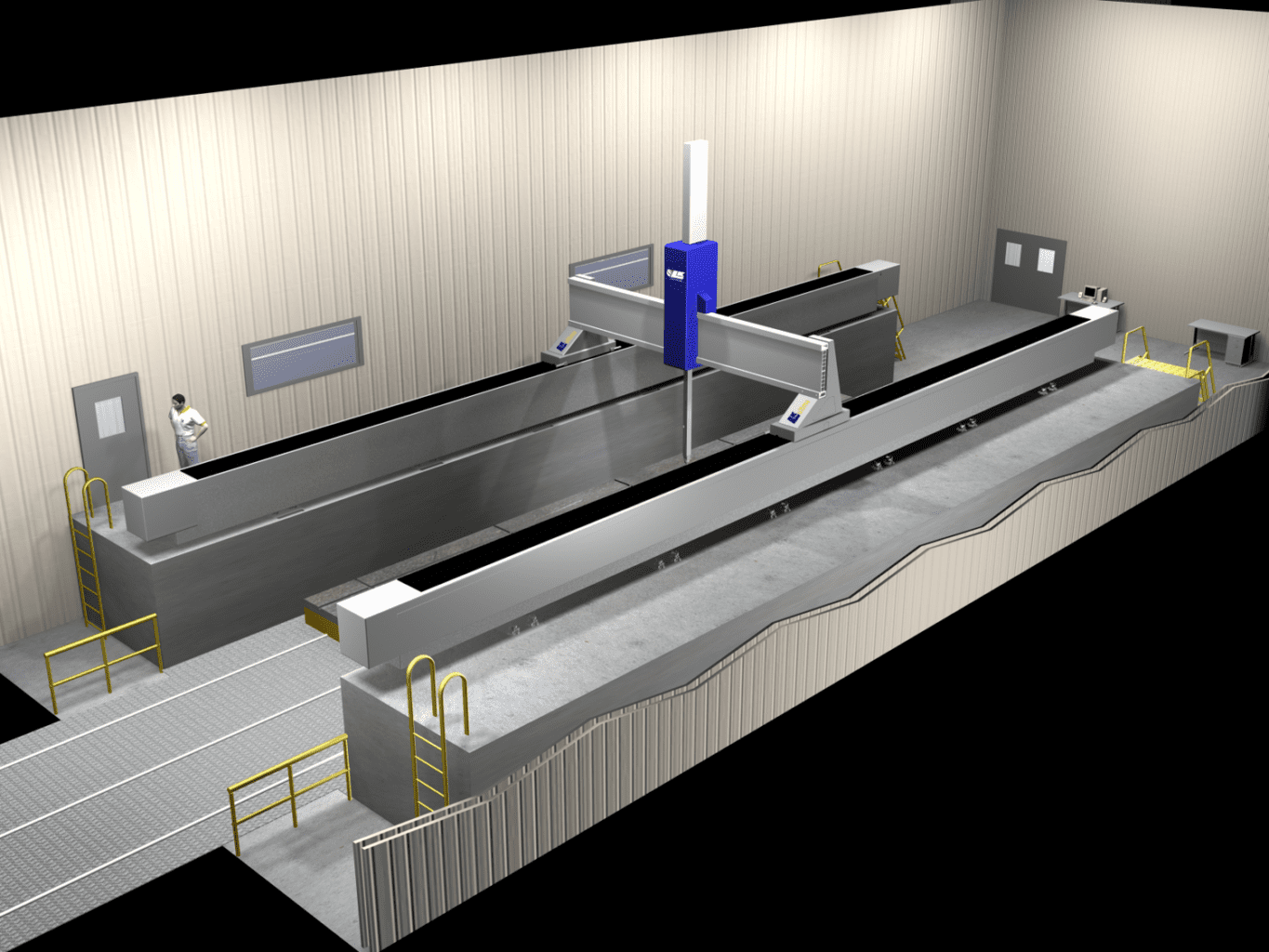

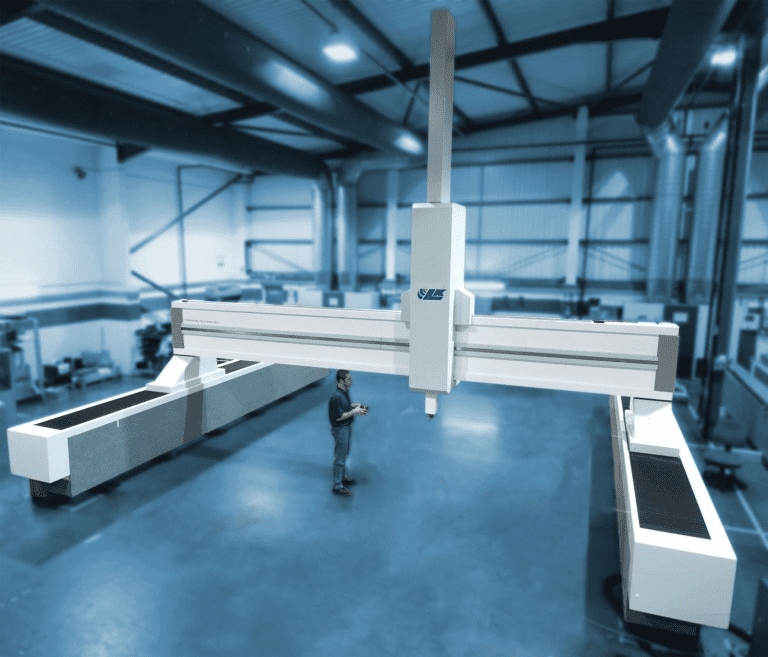

The Ultra Coordinate Measuring Machine by LK Metrology is designed for ultra-large volume measurement tasks, providing exceptional accuracy and reliability. This gantry-style CMM is ideal for industries that require precise measurement of very large components, such as aerospace, automotive, and heavy machinery.
As a distributor for LK Metrology in the U.S. the precision measurement group at Cross Company offers the AEROS Series CMM throughout our territories and our sales teams can work with your team to determine the best LK Metrology solution for your process. Learn more and schedule a demonstration today!
Key Benefits
Ultra-Large Measurement Volume: The Ultra CMM is engineered to handle extremely large-scale measurement tasks, making it perfect for oversized components.
High Precision: Delivers high accuracy and repeatability, ensuring reliable measurements for critical applications.
Robust Gantry Design: Built with a stable and durable gantry structure, the Ultra CMM provides consistent performance in demanding industrial environments.
Advanced Software: Equipped with cutting-edge metrology software, offering comprehensive measurement capabilities and intuitive user interfaces.
Customizable Configurations: Available in various sizes and configurations to meet specific measurement needs and spatial constraints.
AEROS can be equipped with a complete system of protective covers and bellows for the main mobile structure (X / Y axes)
Technical Specifications
Available in standard, incremental sizes of 500mm, featuring an X-axis up to 16 meters, Y-axis from 4.5 to 6 meters, and Z-axis up to 3 meters, with larger strokes available upon request.
Volumetric Accuracy (µm): from 4+L/250
Repeatability: from 4µm.
Max 3D Speed: from 462 mm/sec.
Max 3D Acceleration: from 582 mm/sec2
Industrial Applications
LK Metrology Ultra – Large Volume Gantry CMMs are ideal for a range of industrial applications.
Marine Equipment
Available In The Following Areas
With an extensive background in a variety of industries, Cross has relationships with a number of leading brands, including exclusive distributorships in some areas. We are proud to offer LK Metrology in the following areas:
Resources
Videos
More information From LK Metrology
Interested in learning more? Contact a Cross team member today to discuss your application and see how we can help your operation!
