Hose Fittings, Couplings, and Connectors

What good is a hose without the proper fittings? At Cross Hose & Fittings you can choose from a variety of durable, easy-to-use fittings that will assure fluids and gases will flow through hoses or piping without leaking. Parker Fluid Connections’ Prestolok fittings come in different sizes and have a simple “push-to-connect” technology that will help you get the job done quickly.

Crimpable Fittings

Parkrimp assemblies consist of No-Skive hose and fittings, permanently joined by any of our Parkrimp crimpers. The teeth in Parker’s crimp fittings bite down to the hose wire for a metal-to-metal grip with maximum integrity. Our one-piece fittings can be combined with many No-Skive hose types to cover low, medium and high pressure applications, as well as special application categories that can also be used with permanent crimped fittings.

We offer steel, brass and stainless steel fittings from 3/16” to 3” with our steel fittings featuring corrosion-resistant plating that exceeds SAE standards. Styles include O-ring face seal, flare, male pipe, metric designs and many more. All are compatible with the easy to use Parkrimp system of crimping machines.

Monoblok Fittings

Crimp Hose Fittings

Monoblok fittings are manufactured from a single piece of steel. First introduced in ultra-high pressure hydraulic applications, their lack of brazed or soldered joints provides the utmost in leak protection, eliminating any potential leak paths.

Parker Monoblok fittings are available in a wide variety of end configurations and fitting series. These fittings also feature: No-Skive, bite-the-wire, full-length crimp, corrosion-resistant plating, weather seal, and a low-profile design.

Tube Fittings

Superior plating gives fittings from Cross unmatched protection against red rust. This helps customers avoid the many cost of corrosion- calculated not only in terms of possible leak points and replacement fittings, but also potential lost sales stemming from poor product perception. Fittings are an integral component of any leak-free, well-functioning and great looking hydraulic system.

Fittings from Cross are available in a variety of styles including:

  • Triple-Lok 37 degree flare fittings
  • Triple-Lok 2
  • Seal-Lok O-Ring Face Seal Fittings
  • Compression, bite-type, o-ring face seal fittings
  • EO & EO-2 Metric 24 Degree Flareless Fittings
  • Flange Adapters
  • Pipe Fittings & Port Adapters

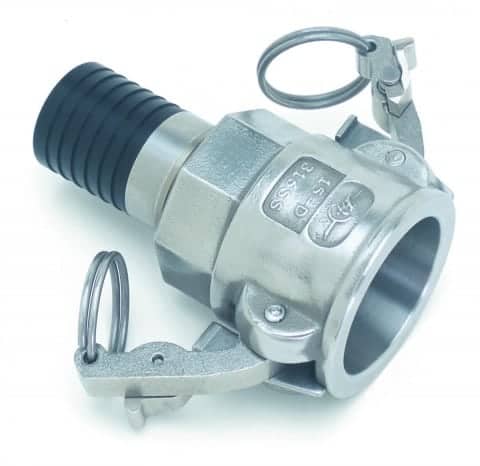

Cam and Groove Couplings

Cam & groove couplings, also called cam lock fittings are a kind of quick connect coupling usually used in most industries as a hose connection to avoid leakages. This kind of coupling is popular because it is considered to be a simple and economical way of re-connecting and disconnecting

A cam & groove fitting can be used in a system where rapid filling of chemical drums takes place. It can be used by factories that have needs of dye, paint and ink medium transfers. It is used where frequent changes of hoses are required to find the right mix. It also suitable for petroleum trucks, etc.

Cam & groove couplings are not recommended for any type of compressed gas service, including steam or air.

Cam and Groove Couplings

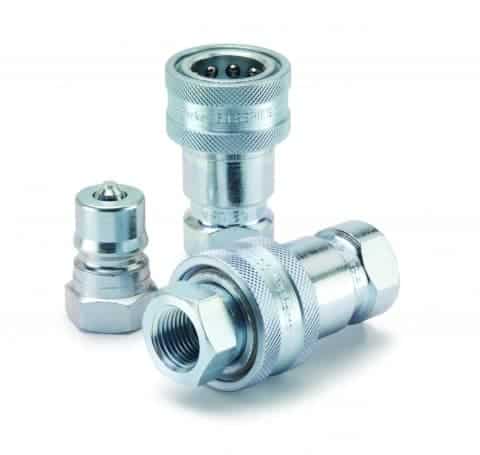

Fluid Connectors

Fluid Connectors

The extensive line of fluid connectors available  from Cross Hose & Fittings generally connect a hose assembly to a port or adapter and are manufactured to meet or exceed industrial specification requirements of SAE, ISO, DIN, DOT and JIS standards. Fitting styles include – hydraulic, pneumatic and instrumentation.

Connectors from Cross are available in a variety of styles including:

  • Quick Disconnects
  • Brass Fittings & Adapters
  • Hydraulic Adapters
  • Sanitary, steam and internally expanded fittings
  • Swivel, Universal and interlocking clamps

Are you interested in hose fittings, couplings, and connectors for your operation? Contact a cross team member to discuss your application in detail!

Request a Quote or Learn more about our Fittings, Couplings, and Connectors
