Precision Linear Motor Stage – XLM Series
Product Overview

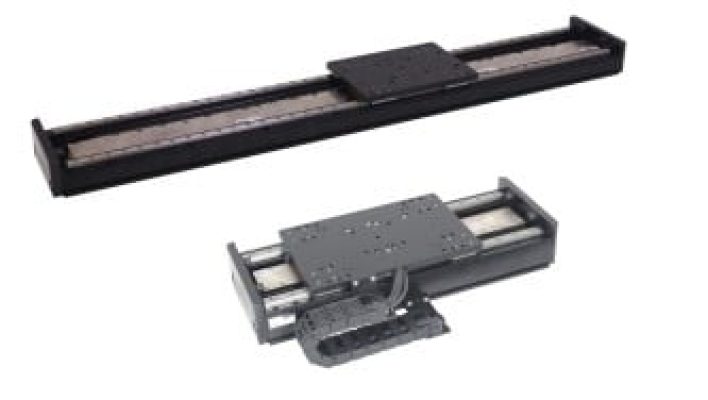

For machinery or instrument builders who need smooth motion and high precision, Parker offers the XLM series. The XLM is a linear positioner that provides micron level precision in three different profile widths from 125mm to 200 mm. Its modular design allows for easy assembly of multi-axis systems.
The XLM series is a precision machined, profiled guide linear positioner which is driven with linear servo motor technology, and utilizes selectable levels of linear encoder technology that are configured to match the application need.
The XLM positioner offers instrument builders a variety of different encoding technologies and resolutions to select from. Standard incremental optical resolutions range from one micron all the way down to ten nanometers. This optical encoder offers exceptionally low subdivisional errors, allowing for very tight control over velocity ripple.
Features and Benefits
Three form factors: 125mm, 145mm, and 200mm width
Three enclosure options
Six different linear encoder options
Ironless linear motor technology
Standard travel options ranging from 40mm to 1500mm stroke
Efficient cable management system
Integrated and adjustable limit sensing
Complete error mapping on each unit with linear slope correction value provided
CE and RoHS Compliance
Available In The Following Areas
Though we’re based in North Carolina, in many cases, we can ship the products you need directly to you. Contact us to learn more.
Specifications
Product Series: XLM
Drive Axis Type: Linear Motor
Maximum Stroke Length: 1500 mm
Continuous Force: 127 N
Peak Force: 414 N
Repeatability: +/- 0.5 UM
Accuracy: +/- 4 UM
Load Capacity: 630 kg
Maximum Surface Speed: 3 m/sec
Maximum Acceleration: 3 g
Ingress Protection Rating: IP30 Sealed option
Feedback Type: Linear Encoder (0.01um, 0.1um, or 1um resolution optical incremental / 1V p=p Sin/Cos / 5, 50nm BISSC-C absolute)
Applications
Metrology
Imaging
Laser Processing
Inspection
Resources
Videos
More information From Parker
Interested in learning more? Contact a Cross team member today to discuss your application and see how we can help your operation!
